Engineered for maximum strength and impact absorption, this breakthrough design delivers speedy installation and pin retention. Using the hammer-free installation, these wear parts let you work smarter and increase profits by slashing machine downtime.
Bucket Teeth
TK-Series Tooth Shapes
Which teeth are right for your next job?
Chisel
The Chisel (CH) tooth is built for rock applications, thanks to its good penetration and self-sharpening profile.
Fanggs
The FanggsTM (FD) tooth is an excellent choice for general-purpose applications. Its strong, curved shape increases bucket fill and provides good penetration.
Flare
The Flare (FR) tooth’s bucket-fill capabilities are perfect for softer soils and applications that require a clean, flat-bottomed surface.
Heavy-Duty Loader
The Heavy-Duty Loader (LDH) tooth is 38-percent heavier than the comparable-sized loader tooth. With this profile, penetration is maintained while additional wear material is available.
Loader
The Loader (LD) tooth is specifically designed for loaders. The bottom of the tooth aligns with the bottom of a level loader bucket, resulting in a clean floor.
Loader Rock Penetrating
The Loader Rock Penetrating (LDRP) tooth has 30-percent more wear material than its LDH equivalent. This tooth is designed for rock buckets used in highly abrasive conditions that show severe wear on the top of the tooth.
Severe-Duty
The Severe-Duty (SD) tooth boasts 20-percent more material than our Fanggs model. Designed for your toughest jobs, it’s ready to tackle highly abrasive applications where tooth wear is an issue.
Tiger
The Tiger (TG) tooth provides maximum penetration for tightly compacted soils, clay, and even rock.
Twin Tiger
The Twin Tiger (TT) tooth features two points designed for optimum penetration. This wider style is commonly used with TG teeth fitted to the outside corner positions of your bucket to maximize clearance during the dig cycle.
All-Makes Replacement Teeth
Expand AllCollapse All
John Deere 'Original Line' Teeth
John Deere builds rugged replacement teeth and adapters for most brands of backhoes, excavators, loaders, scrapers, and graders. John Deere teeth are available in either split-washer or two-piece-pin configurations to make replacement of these critical wear parts as quick and cost efficient as possible.

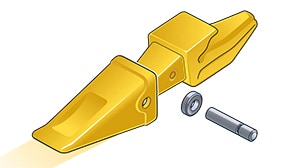

Caterpillar Replacement Teeth
The oversized pocket characteristics of these teeth with the extended adapter nosepiece provide a nose fit between the tooth and adapter which results in strong impact resistance with a loose fit in the ramps. Cat style teeth use a horizontal pin and retainer.
H&L Replacement Teeth
H&L style teeth are designed for backhoes and excavators. They are available in a multitude of shapes offering superb performance and reliability in all digging conditions. H&L style teeth use a horizontal flex pin.
Hensley Replacement Teeth
The parabolic (dished-out) design creates a wedging and self-tightening fit. A recessed channel on the inside sidewall of the tooth matches a tapered extension on the adapter nosepiece forming a locking fit. The design absorbs impact loads. Most Hensley style teeth use a vertical roll pin; flex pin or steel keeper, depending on size.
ESCO Helilok®/Vertalok® System
John Deere builds rugged replacement teeth and adapters for most brands of backhoes, excavators, loaders, scrapers, and graders. John Deere teeth are available in either split-washer or two-piece-pin configurations to make replacement of these critical wear parts as quick and cost efficient as possible.
ESCO Conical Teeth
The "conical" design mating system between tooth and adapter creates self-tightening action. The raised centre area on the top and bottom of the adapter nosepiece fits tightly into the formed area on the top and bottom of the tooth pocket. The design reduces tooth movement both vertically and horizontally. Conical teeth use a vertical pin and rubber lock.
ESCO Super V™
The Super V tooth twists a quarter turn onto the adapter and "butts up" against the adapter nose to match breakout forces more closely. The unique, 1-piece, vertical, drive-thru pin locks to the tooth ear for excellent point retention. It is completely covered by the tooth ear to reduce wear and avoid pin walk. The 1-piece pin provides easier changeover and is reusable for 29 Series sizes and larger.
All-Makes RVJ Tooth System
We engineered this system to deliver hammerless technology to existing J-Series adapters.
