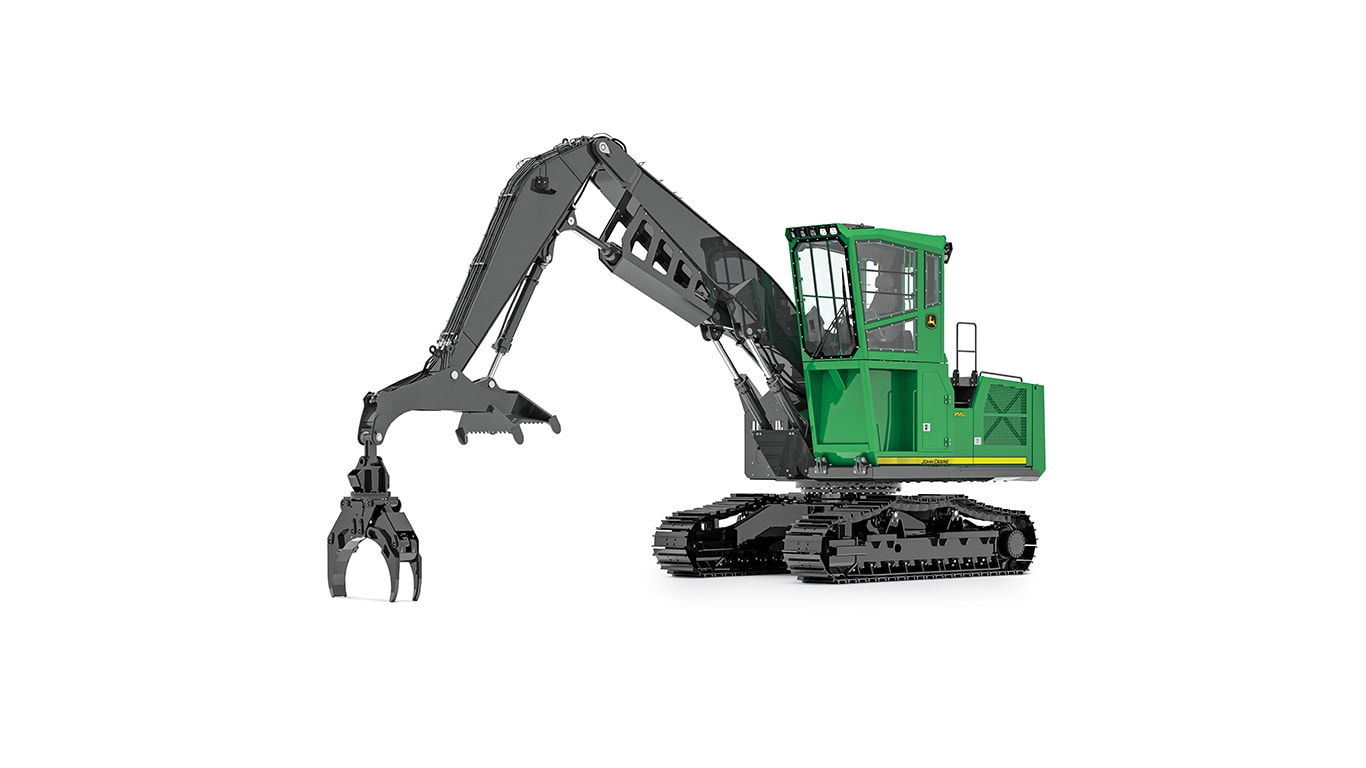

2956GSwing Machine
- Net Power: 166 kW (223 hp) at 1,900 rpm
- Max. Hydraulic Flow: 248 L/m (65.5 gpm) × 2
- Swing Torque: 120,000 Nm (88,507 lb.-ft.)
- Drawbar Pull: 30 350 kgf (66,910 lbf)
Features
Expand AllCollapse All
Mobile device using JDLink™
TimberMatic™ Maps monitor displaying live production data
Machine Health Monitoring Center
Service doors open on a 3154G
Service doors open on 2956G
Cooling system on 3154G
Undercarriage on John Deere Swing Machine
Floor to ceiling front window
Inside the cab of a John Deere Forestry Swing Machine
Gain valuable insights with Precision Forestry solutions
Mobile device using JDLink™
TimberMatic™ Maps monitor displaying live production data
Machine Health Monitoring Center
Now included in base machine, the JDLink telematic system provides the foundation for John Deere’s Precision Forestry solutions. These systems help optimize your machine, your uptime, and your jobsites, which ultimately lead to improved production efficiency.
- JDLink connectivity enables you to view several parameters of your machine, including its location, fuel level, average fuel burn rate, idle time, machine utilization, and much more
- When enabled, John Deere Connected Support™ allows the dealer to provide remote diagnostics, rapid service response with the right part in hand, and parts availability; all to maximize machine uptime
- John Deere’s centralized Machine Health Monitoring Center analyzes data from thousands of connected machines, identifies trends, and develops recommended actions to help prevent downtime
- TimberMatic Maps gives enhanced visibility to the jobsite, which streamlines communication and increases efficiency
- TimberManager™ provides remote visibility to your operation from any device, allowing you to make smart business decisions based on real-time production data
Easy to reach serviceability
Service doors open on a 3154G
Service doors open on 2956G
Cooling system on 3154G
Easy to reach service components allows operators and technicians to perform regular maintenance checks and scheduled maintenance. These regular maintenance checks minimize break downs and repair expenses in the future. The G-Series features easy to open doors to quickly view and access the scheduled maintenance areas.
- Variable-speed hydraulic reversing fan helps purge debris from the cooling system
- Excellent access to hydraulic system on right hand side for daily maintenance checks and inspections
- Left hand side doors provides complete access to the cooling system for cleaning and inspection
- A hinged AC condenser helps in total cleaning of the cooling package
- A removable debris screen guard on the inside of the left hand door for easy cleaning
- Large fuel tank increases time between refueling intervals
- Remote diagnostics and rapid service response with JDLink™
Undercarriage Structure
Undercarriage on John Deere Swing Machine
John Deere G-Series Swing Machines lower structure forms an “X” and provides excellent load distribution close to the ends of the track frames. The track frames are designed to provide a smooth ride as well as the ultimate strength and stability for all terrains.
- Even distribution of weight across the lower structure, provides less stress on the weld joints between the X-body and the track frames
- Tractive effort to maneuver through deep snow, swamps, or steep slopes
- Multiple configurations of track pad widths and number of grousers to match customer needs
- Two-speed automatic shift travel motors
- Optional tri-tracks reduce track twisting
Maximize comfort and visibility with a spacious cab
Floor to ceiling front window
Inside the cab of a John Deere Forestry Swing Machine
Maximizing comfort and visibility helps maximize productivity. Increased legroom*, isolation mounted, cab risers are all factors to maximize comfort and visibility. The polycarbonate windows durability meets safety standards. Ergonomically correct short-throw pilot levers provide smooth, precise fingertip control with minimal movement or effort.
- Large, spacious operator station with excellent ingress and egress
- Ergonomic controls help increase operator productivity
- Floor-to-ceiling window, large side windows, optional skylight and floor windows (rear entry cab only) provide ample visibility
*for side-entry cab models compared to previous series
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| View detailed information in specifications sheet. | John Deere 2956G Swing Machine |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PSS 6.8L | |||
| Displacement, ltr (Inches³) | 6.8 (415) | |||
| Engine Output, kW (hp) | 166 (223) | |||
| Engine Output - Net, kW (hp) | 166 (223) | |||
| Carrier Rollers - Each Side | 2 | |||
| Track Rollers - Each Side | 9 | |||
| Track Shoe Width, mm (inches) | 700 (28) |
DIMENSIONS
| Overall Length, mm (ft/in) | 14980 (49 ft 2 in) | |||
|---|---|---|---|---|
| Transport Height, mm (ft/in) | 3830 (12 ft 7 in) | |||
| Overall Width, mm (ft/in) | 3460 (11 ft 4 in) | |||
| Overall Track Length, mm (ft/in) | 5000 (16 ft 5 in) | |||
| Track Length On Ground, mm (ft/in) | 4060 (13 ft 4 in) | |||
| Tailswing Radius, mm (ft/in) | 3370 (11 ft 1 in) | |||
| Ground Clearance, mm (ft/in) | 760 (2 ft 6 in) | |||
| Width Over Tracks, mm (ft/in) | 3400 (11 ft 2 in) | |||
| Track gauge, mm (ft/in) | 2690 (8 ft 10 in) | |||
| Horizontal Reach, m (ft/in) | 11.91 (39 ft 1 in) | |||
| Dump Height, mm (ft/in) | 9080 (29 ft 9 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 800 (211) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 195 (52) |
PERFORMANCE
| Ground Bearing Pressure, kPa (PSI) | 68.5 (9.93) | |||
|---|---|---|---|---|
| Slew Torque, kNm (lbf / ft) | 120 (88507) | |||
| Travel Speed, kph (mph) | 3.9 (2.4) | |||
| Lift capacity at max reach, kg (lbs) | 6040 (13320) | |||
| Pump Type | Axial Piston | |||
| Pump Flow, lt/min (gallons (US) / min) | 248 (65.5) x 2 | |||
| Boost Pressure, kPa (PSI) | 38000 (5511) |
WEIGHTS
| Operating Weight, kg (lbs) | 39004 (85989) |
|---|
Features and specifications are based on published information at the time of publication. Features and specifications are subject to change without notice.
