MegaWide Plus pickup

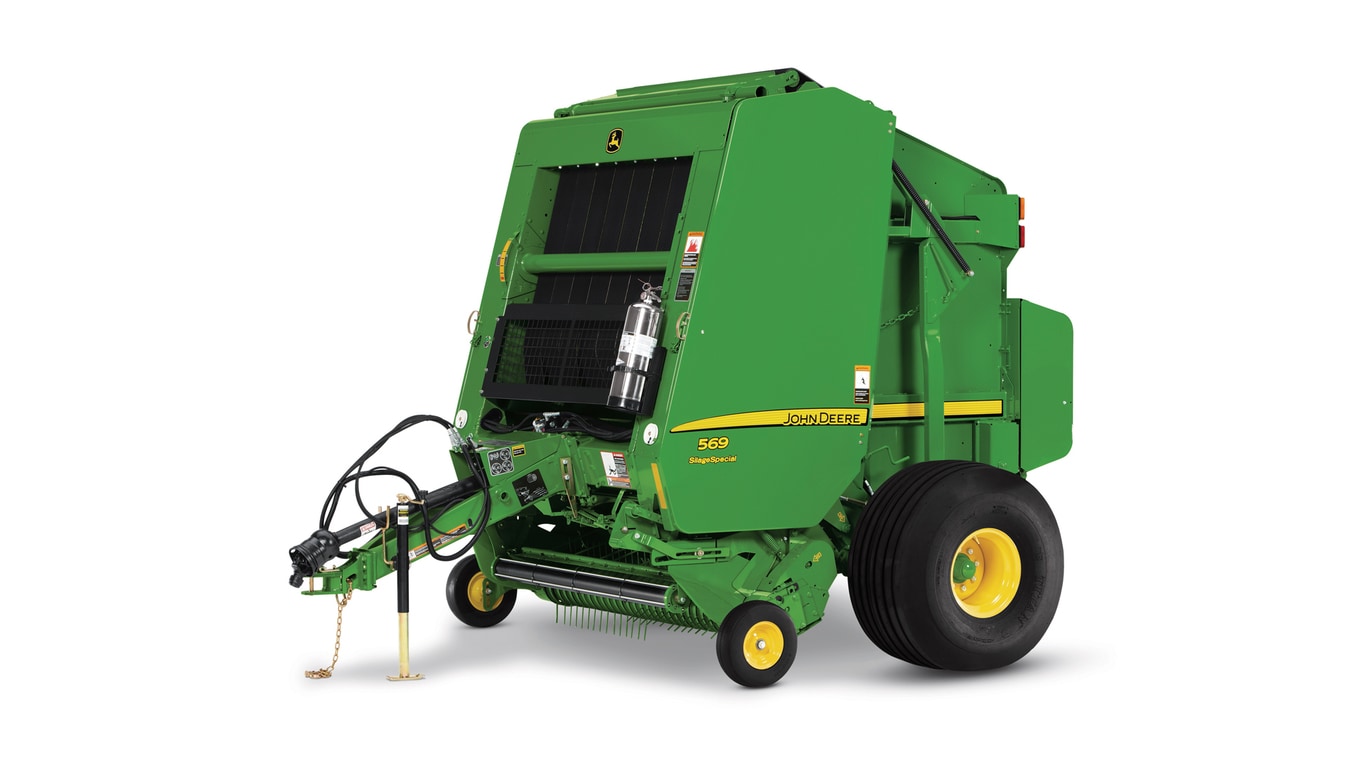

A MegaWide Plus pickup is available on 449, 459, 559, and 569 Round Balers. It is base equipment on the 459 Silage Special, 559 Silage Special, 469, 469 Silage Special, and 569 Silage Special Balers.
This pickup makes baling easier, especially in wide or windblown windrows, and increases productivity; more hay volume means more bales per hour.
- Flare-to-flare width of 1.8 m (5.9 ft) on balers with a 1.2 m (4-ft) wide bale chamber
- Flare-to-flare width of 2.2 m (7.2 ft) on balers with a 1.5-m (5-ft) wide bale chamber
- MegaWide Plus pickup makes it easier to produce better-shaped bales and improves crop pickup in wide, windblown, or scattered windrows
- Mega teeth, located at the ends of the pickup, pull crop around the flares when baling wide or windblown windrows
- MegaTough pickup teeth provide greater strength and durability
- Exclusive square design handles high-impact loads without yielding
- Sturdy toothbar design
- Self-adjusting roller baffle
- Spiral rotor-feed system improves feeding in all crop conditions
- Chain driven for positive feeding
- Cutout clutch protected
- Semi-pneumatic gauge wheels
MegaTough pickup teeth
Mega and MegaTough pickup teeth are base equipment:
- Mega teeth, at the ends of the pickup, are heavy-duty for long life and improved crop retrieval
- MegaTough pickup teeth are designed to withstand the harshest baling conditions and provide long service life
Toothbars on 1.5-m (5-ft) baler
The 1.2-m (4-ft) balers use a full-length, reinforced toothbar design.
The 1.5-m (5-ft) balers use a heavy, C-channel construction. The pickup toothbars are divided into two half-sections that mount to a center spider for increased strength and even crop feeding.
Available only on the MegaWide Plus pickup, the patented roller baffle is self-adjusting and produces smoother crop flow across the pickup. The roller also improves crop pickup in small windrows and prevents roll ahead of crop.
When combined with the MegaWide Plus pickup, this feeding system allows increased ground speed with less chance of plugging, for increased productivity in all field conditions.
- Smoothes crop for even flow across pickup
- Allows for faster ground speed with less chance of plugging
- Increases operator productivity
Auger and rotor feed system
The MegaWide Plus pickup uses a rotor feeding assembly, which mounts behind the pickup for smooth and even crop flow into the bale chamber.
- Augers and rotor teeth are driven on the same shaft, eliminating the need for additional drives.
- The rotor is fixed to the baler frame, allowing positive and even feeding into the bale chamber.
- Large-diameter converging augers have high crop-flow capacity, and auger scrolls help to force crop into the chamber.
- Spiral design enhances feeding in uneven windrows and reduces loading on the rotor.
Rotor strippers allow crop to be lifted from the rotor teeth into the chamber without cutting or wrapping the crop.
Cutout clutch protection and feeder-drive chain
The MegaWide Plus pickups are chain-driven for positive bale starts with cutout clutch protection. The pickup is now being driven off the drive roll and bypasses the starter roll. This will allow for reduced wear and breakage of the starter roll chain.
Semi-pneumatic gauge wheel
Semi-pneumatic gauge wheels provide smooth ground gauging over uneven terrain and protection to the pickup.
- Stiffer rubber sidewalls
- No air pressure to maintain, which mean no flat tires
- Adjustable to meet pickup tooth-to-stubble height requirements
The pickup float springs are positioned for excellent flotation.
- Adjustable to meet varying field conditions
- Float springs only support the pickup reel
- Rotor assembly is fixed to the baler frame, eliminating additional weight on the pickup system
Adjustable crank handle
The adjusting crank positions the pickup to the desired operating height to match crop or field conditions.
An optional hydraulic pickup lift cylinder is available as an attachment.
- Makes raising for transport or clearing obstructions easy
- Crank handle serves as a down stop
- Adapts to regular, MegaTooth and MegaWide™ Plus pickups
- Hydraulic pickup lift comes standard on premium machines
