Maximise uptime. Enhance performance. Drive efficiencies
Get consistent high-density bigger bales with reduced labour and maintenance requirements with the L341R High-Density Large Square Baler.
-
- Bale Documentation with John Deere Operations Center™
- MegaWide™ pickup with MegaTough™ pickup teeth
- John Deere moisture sensor and weighing system
- BalerAssist™ drivetrain system
-
- MegaWide™ Plus pickup with MegaTough™ pickup teeth
- DiamondTough™ belts
- MegaWide™ and High capacity
- Net Wrap Loading
-
- Full-width feeding pickup
- Deep-flighted auger feeding
- Hydraulic bale tension available
- 31 to 127 cm (12 to 50 in.) bale length
Round After Round
Whether you’re working with dry hay, high moisture or silage, our round balers are designed to meet the demands of your operation.
VM, VR, and CR Round Balers
| Model | Bale Diameter | Bale Width | Feeder Type | Bale Champer Type | Drive Line PTO Speed | PTO (minimum) |
|---|---|---|---|---|---|---|
|
0.8 to 1.60m (2.6 to 5.2 ft) |
1.21 m (3.97 ft) |
MaxiCut HC 68 or 40 |
Two endless belts - 573mm (22.5 in) |
Available on all except MaxiCut HC 40: 540 rpm (124kW, 166.3hp) |
120 hp (90 kW) |
|
|
0.8 to 1.85m (2.6 to 6 ft) |
1.21 m (3.97 ft) |
MaxiCut HC 68 or 40 |
Two endless belts - 573mm (22.5 in) |
Available on all except MaxiCut HC 40: 540 rpm (124kW, 166.3hp) |
120 hp (90 kW) |
|
|
1.0 to 1.65m (3.3 to 5.4 ft) |
1.21 m (3.97 ft) |
Rotoflow or MaxiCut HC 68 |
Six endless belts - 185mm (7.3 in) |
540 rpm (124kW - 166.3 hp) |
100 hp (75 kW) |
|
|
0.8 to 1.6 m (2.6 to 5.25 ft) |
1.21 m (3.97 ft) |
Rotoflow or MaxiCut HC 68 or 40 |
Two endless belts - 573mm (22.5 in) |
Available on all except MaxiCut HC 40: |
120 hp (90 kW) |
|
|
0.8 to 1.85m (2.6 to 6 ft) |
1.21 m (3.97 ft) |
Rotoflow or MaxiCut HC 68 or 40 |
Two endless belts - 573mm (22.5 in) |
Available on all except MaxiCut HC 40: 540 rpm (124kW, 166.3hp) |
120 hp (90 kW) |
Fixed Chamber Round Balers
| Model | Bale Diameter | Bale Width | PTO Power (minimum) |
|---|---|---|---|
|
1.25 - 1.35 m |
1.17 m |
56 kW (75 hp) |
|
|
1.25 - 1.35 m |
1.17 m |
75 kW (100 hp) |
Being Square.
When it comes to hay, timing is everything. You need a baler that you can depend on to get the job done right the first time. Built and engineered in Ottumwa, Iowa, our large square balers feature a wide pickup, a moisture and weight sensor that measures levels flake by flake and the convenience and reliability of BalerAssist™ to easily clear plugs from the cab.
Large Square Balers
| Model | Bale Length | Bale Width | Bale Height | PTO Power (minimum) |
|---|---|---|---|---|
|
0.60 - 3.00 m |
0.80 m |
0.90 m |
87 kW (115 hp) |
|
|
0.60 - 3.00 m |
1.20 m |
0.90 m |
108 kW (145 hp) |
Small Square Balers
| Model | Bale Length | Bale Width | Bale Height | PTO Power (minimum) |
|---|---|---|---|---|
|
0.30 - 1.27 m |
0.46 m |
0.36 m |
26 kW (35 hp) |
Bale Documentation with John Deere Operations Center™
It takes data to make informed decisions. And with Bale Doc, you have the ability to analyse yield trends and nutrient replenishment cutting after cutting, year after year with the John Deere Operations Center™.
G5e Monitor
We packed a lot into our new G5e Display. For one, you get a colourful, easy-to-read 8-inch touchscreen to give you more space for more work details. All in bright, colourful 1080 HD. The G5e gives you clear, insightful data that you can track and adjust on-the-go to get more consistent bales1.
Bale Documentation with John Deere Operations Center™
Cutting after cutting, year after year, analyse the agronomic performance of your hay with Bale Doc.
Moisture Sensor
Monitor bale weight and moisture throughout the entire baling process to make real time decisions.
DiamondTough™ Belts
Get the strength and durability you need for handling heavy loads with the DiamondTough Belts.
Surface Wrap Packaging
Make more bales, reduce leaf loss and shed water better using Edge-to-Edge, CoverEdge™ or B-wrap covering.
Need Help Choosing a Baler?
Not sure which baler is right for your operation? Let us help you chose with the Baler Product Selector tool.
Technology & Tips
Precision Ag Technology
Connecting people, equipment, and technology to give you an advantage.
Find Your Local Dealer
Check out the equipment that works best for you at your local dealer.

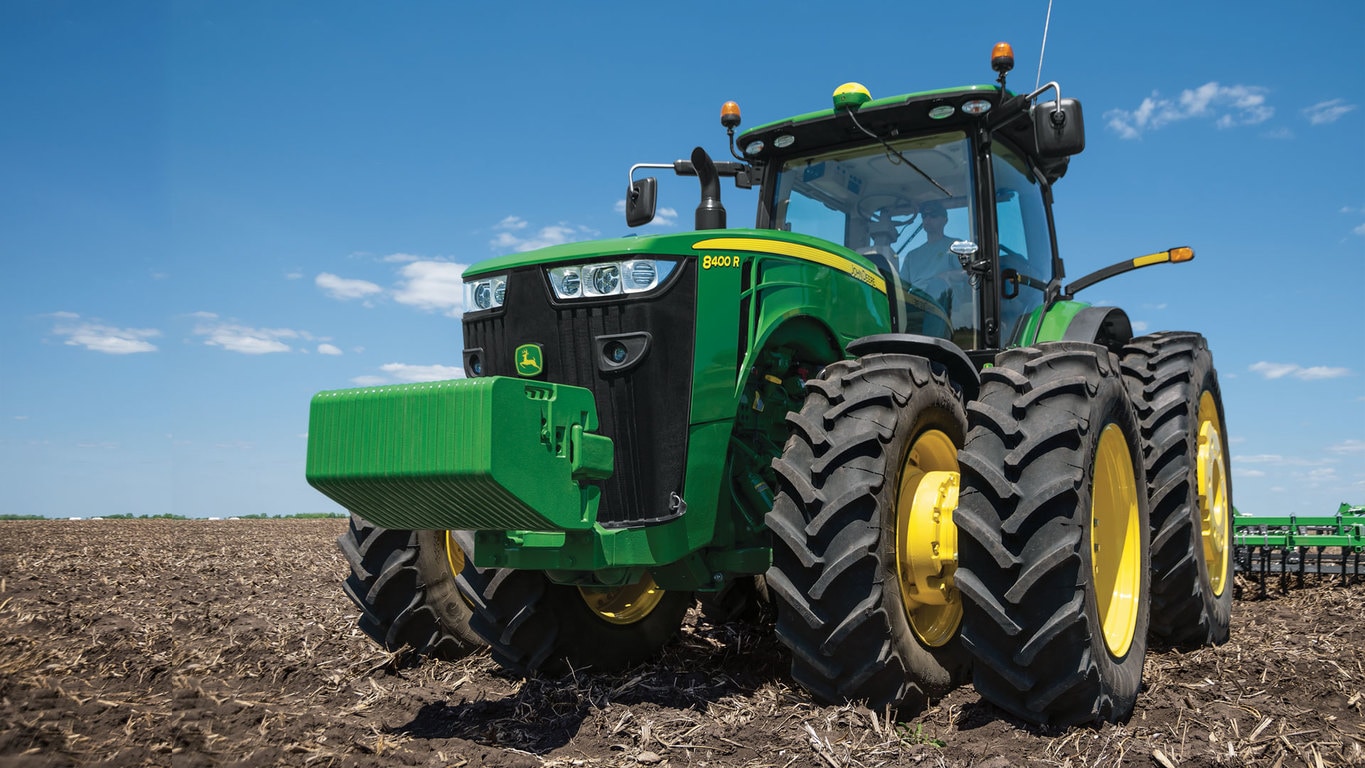

8R Tractors245 to 400 engine horsepower. The New 8R/8RT Tractors leave no room for compromise. They run fast, perform strong, and consume less.

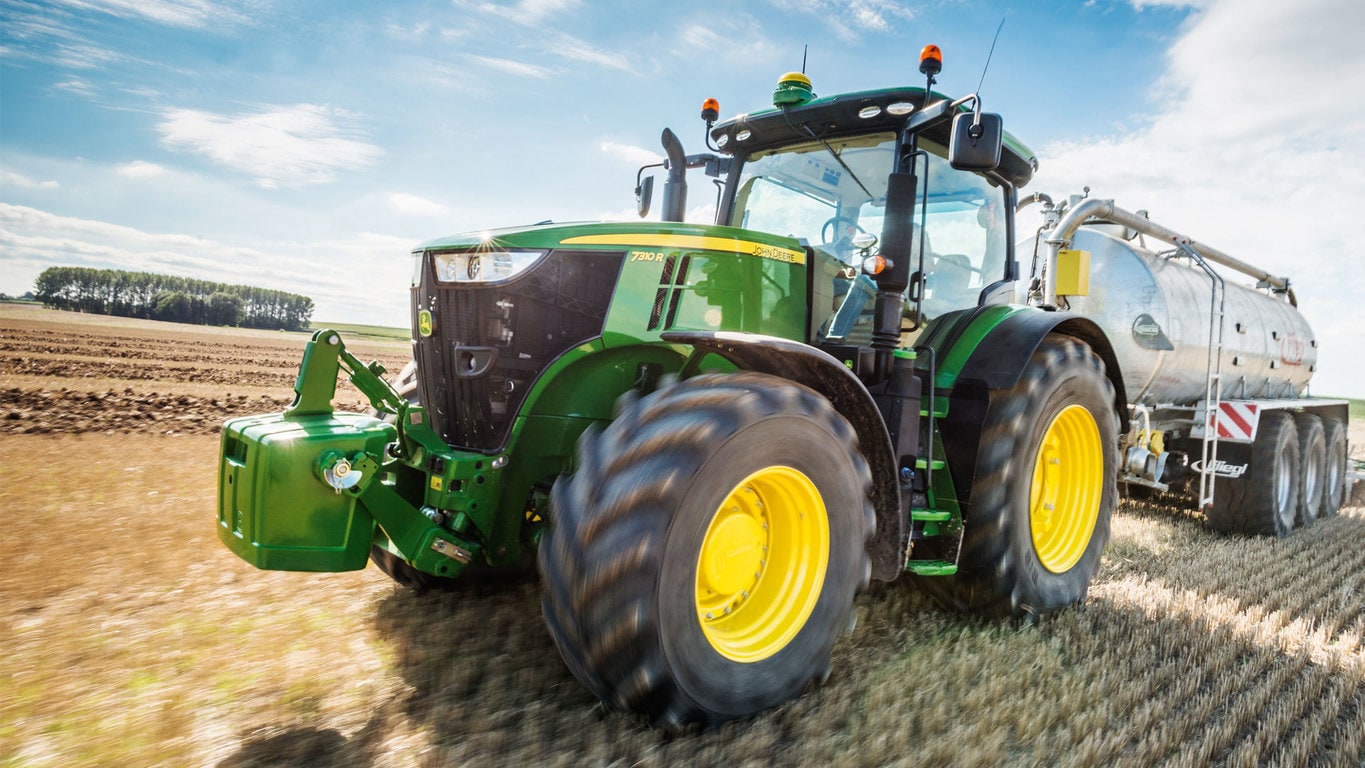

7R Tractors210 to 310 engine horsepower. The New 7R Tractors combine the power of a row-crop with the versatility of a utility tractor.

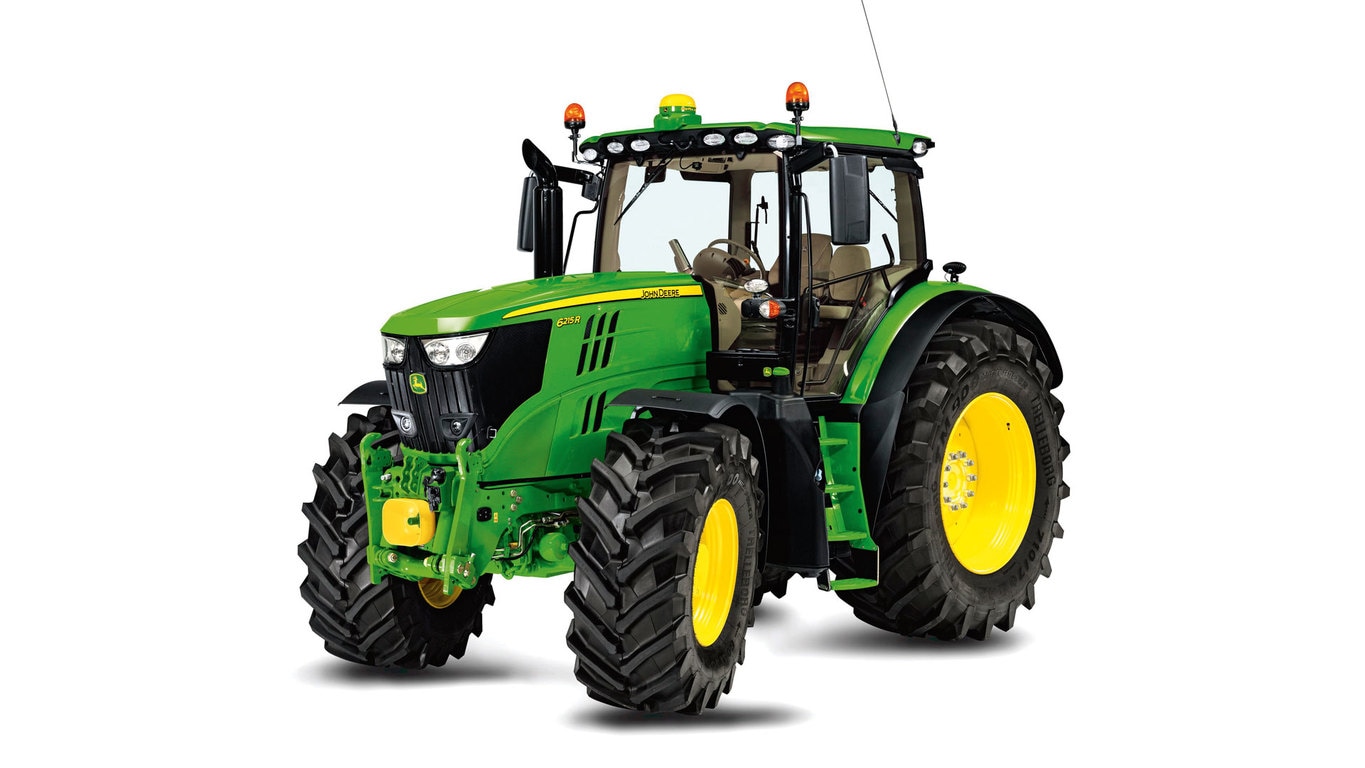

6R Tractors145 to 250 hp. With 20 percent more interior space and a host of other new features, row-crop and hay producers won't find a more versatile tractor.
1G5e Monitor, not compatible with EU round balers.
