Up to 70% more capacity in high yielding wheat
You have a tight harvest window and an even tighter profit margin. You need more productivity and low losses. You need a combine that can get as much done in a day as you need it to — day in and day out, season after season. You need an X9 Combine. These combines deliver an average of 45% more harvesting capacity across all crop types, with no sacrifice in grain quality — all while using 20% less fuel.1
-
- 162.1 litres/s (4.6 bu/s) peak unload rate
- 14,800-L (420-bu) power folding grain tank, optional 19,381.5-L (550-bu) tank*
- PowerTech™ 13.6L engine
- 470 max engine kW (630 hp)
-
- 186.7 litres/s (5.3 bu/s) peak unload rate
- 16,210-L (460-bu) power folding grain tank, optional 19,381.5-L (550-bu) tank*
- PowerTech™ 13.6L engine
- 515 max engine kW (690 hp)
* Requires 710 duals or tracks.
Automation
Predictive Ground Speed Automation
The optional Ultimate Technology Package includes Predictive Ground Speed Automation. Using two forward, cab-mounted stereo cameras, the X9 constantly measures crop height and volume – while pre-harvest satellite field images generate a predictive field map. The combine takes this data and automatically adjusts ground speed BEFORE entering changing crop areas. Feel confident to maintain peak feed rates all day long, even in inconsistent crop conditions. That helps you increase combine capacity while minimising grain loss.
Harvest Settings Automation
Harvest Settings Automation – included in the Premium and Ultimate Technology Packages – makes it easier than ever to set the specific outcomes you expect. Using your G5Plus Display, simply set acceptable limits for grain loss, foreign material, and broken grain. Once set, the combine automatically adjusts itself to deliver the performance you want. No more manually adjusting rotor speed, fan speed, and concave, chaffer, and sieve clearances. The combine does it for you according to outcomes you've already prescribed. That gets you into crops faster and reduces the things you have to constantly monitor.
AutoTrac™ Turn Automation with Header Raise/Lower
More and more operators are discovering the hands-free confidence AutoTrac Turn Automation (ATTA) gives them during in-crop turns. But they still had to remember to raise and lower the header. Not anymore. We've added the capability to automatically raise and lower your header—at the right time and the right place. That's one less task to worry about, so you can concentrate on more important things.

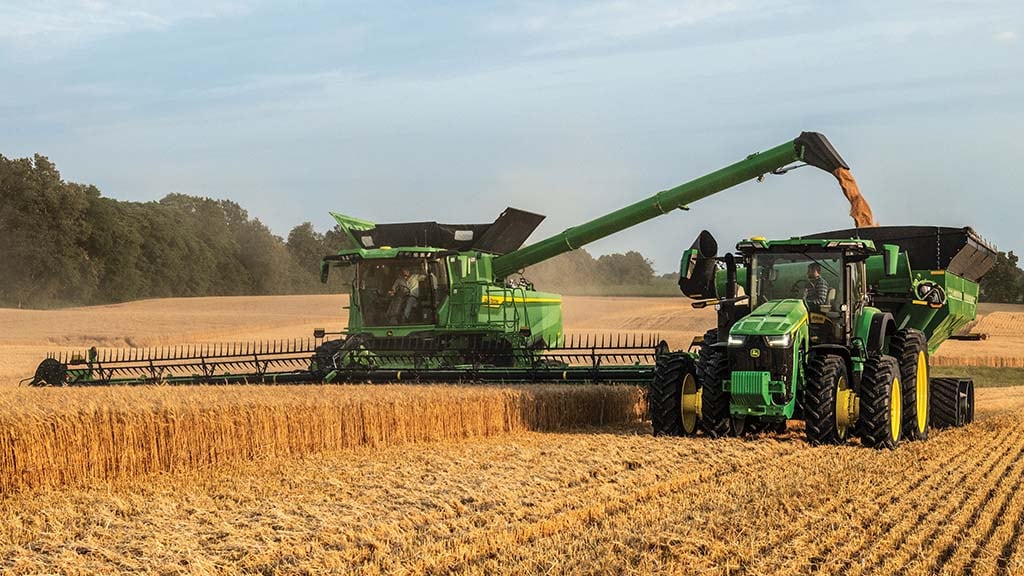

Auto Unload
There's a lot to focus on during harvest, especially when you're dealing with multiple machines and tight harvesting windows. Auto Unload uses an auger-mounted camera to constantly detect the grain fill level inside your moving cart. As it detects the fill, it automatically sends nudge commands to the tractor to move the grain cart forward and backward to evenly fill.
Auto Unload is available as a factory install on new John Deere S7 and X9 Combines or as a precision upgrade on select older S700, S7, and X9 Combines.

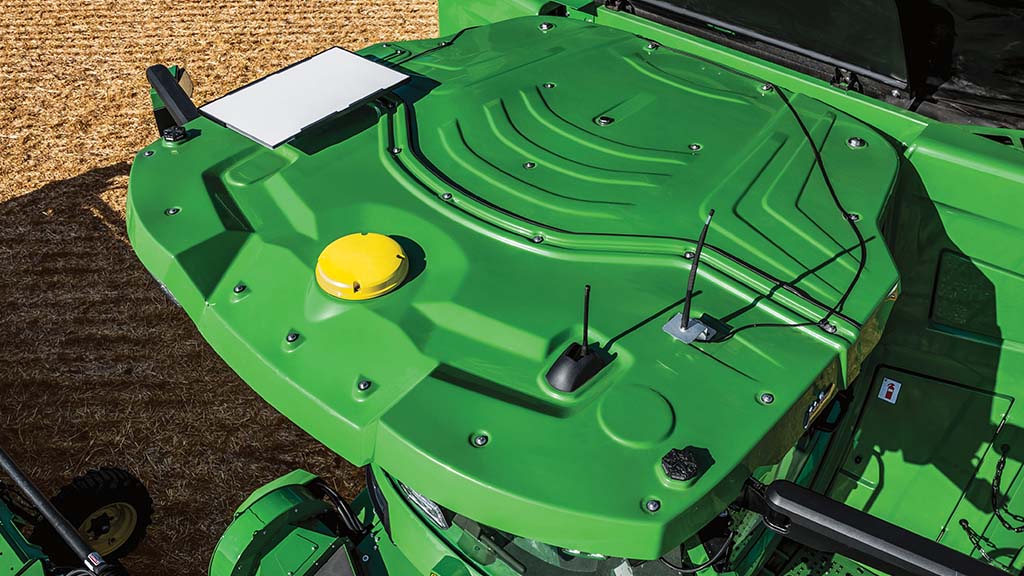

JDLink™ Boost
Stay connected when it matters most. JDLink Boost helps strengthen your JDLink Modem7 to keep you connected in areas with heavy canopies and limited mobile coverage. It is designed to provide continuous machine and field monitoring to support timely, informed decisions during harvest. You can send guidance lines, prescriptions, plans, and work records to your in-cab display, and wirelessly move data between the machine and John Deere Operations Center™. The system also improves diagnostics and troubleshooting with remote access.
Capacity
Dual separator
Two 60.96 centimeters (24-inch) rotors with an increased threshing area of 45% and separating area of 80%4 for better threshing and separating in high-volume crops.
Cleaning shoe
New shoe offers 36%1 more cleaning area to effectively put clean grain in the tank in the toughest harvesting conditions.
Bigger on the inside
Even with 45% more threshing area4, and 80% more separating area4, the outside dimensions are about the same as the S7 900, for tight turns and narrow transport.
Efficiency
A more efficient engine
A new John Deere 13.6-litre engine delivers up to a 45% increase in harvesting capacity, while only needing 11% more horsepower than an S7 9001.
Seamless speed control
30%2 more torque to handle larger loads with a smooth power increase with the new ProDriveTM XL transmission.
Belt-drive system
Our simplified belt-drive system uses larger pulleys and longer belts to improve the handoff of power and belt wear-life2.
20% less fuel2
It's not just the engine that delivers lower fuel costs, it's every aspect of the design. The belts, transmission, residue system, rotors, and lower RPM all play a role in saving you money on fuel.

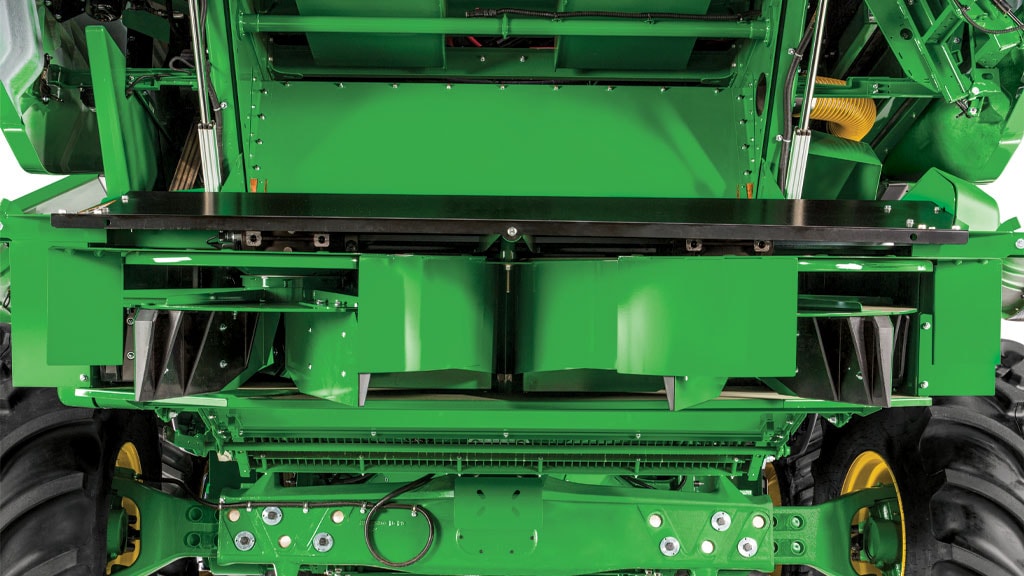

Improved residue management
New system spreads up to 15.2-metres wide; the double-decker design provides better air flow for even distribution with less power consumption.
Calculate Potential Savings
See what you can save each harvest season with the Harvesting Performance Calculator. Enter your operation's inputs and operating variables to calculate the estimated savings by switching to John Deere harvesting equipment.
Versatility
Integrated intelligence
From the Integrated StarFire™ Receiver to JDLink™ Connectivity, the X9 Combine comes ready to make your harvest easier.
Get More in Rice
Gain resistance to the abrasiveness of rice, along with up to 65%5 more capacity while using 20% less fuel6 with the tough, wear-resistant X9 Rice combine package.
Choose from wheels or tracks
Tracks deliver improved floatation and allow for transport speeds up to 40 kilometres per hour.

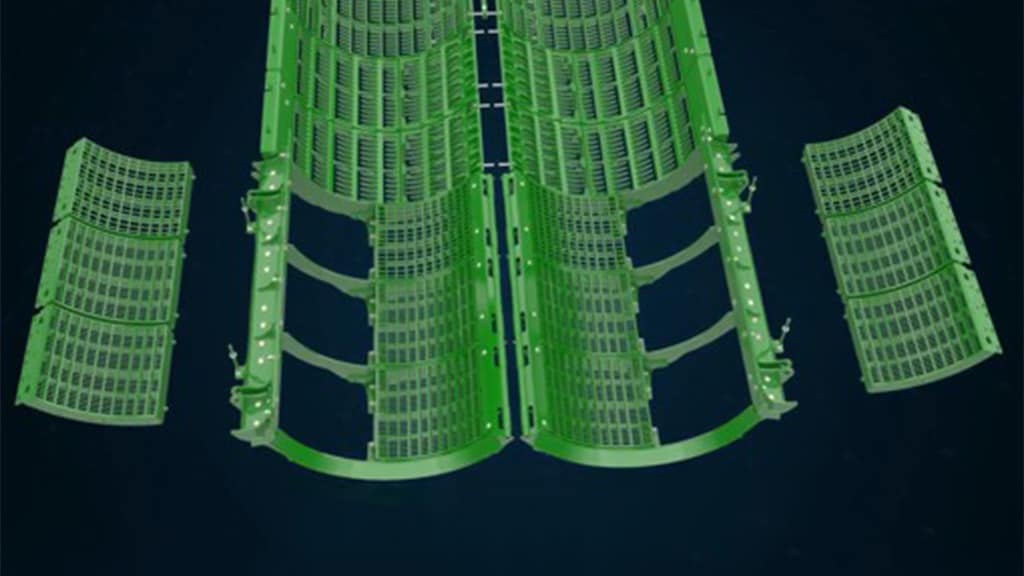

Tru-Thresh™ concaves
Our all-new optional Tru-Thresh concaves offer a modular setup, with a half-length design that makes installation and serviceability easier than previous models. Built for enhanced durability, Tru-Thresh concaves are also compatible with remote concave and separator grate covers — giving you even more control of the separator right from the cab.
Reduced plugging
The modulated feederhouse reverse allows the feederhouse to reverse under full engine RPM to reduce the chance of plugging in heavy crop.
In-cab control
With the G5Plus CommandCenterTM Display, you get in-cab control of the power folding unloading auger and adjustable spout for easier unloading and residue adjustments.
Headers and Platforms
X9 Combines are engineered to create a perfect balance between front-end equipment and machine power, so together they deliver stable, consistent performance with every pass, even in tough conditions.

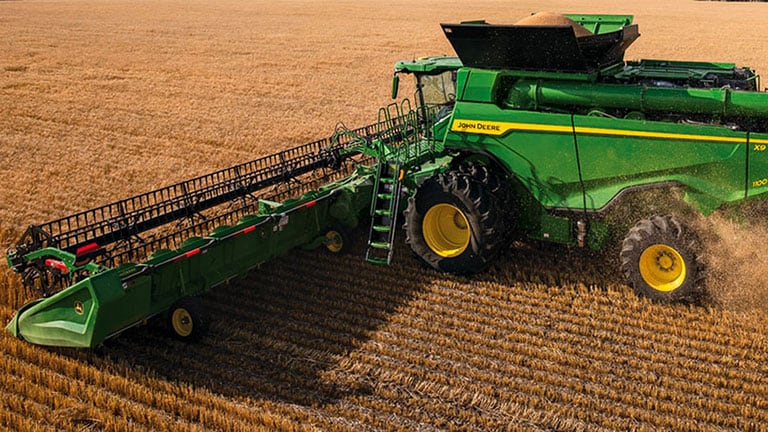

Drapers
Belt Pickup

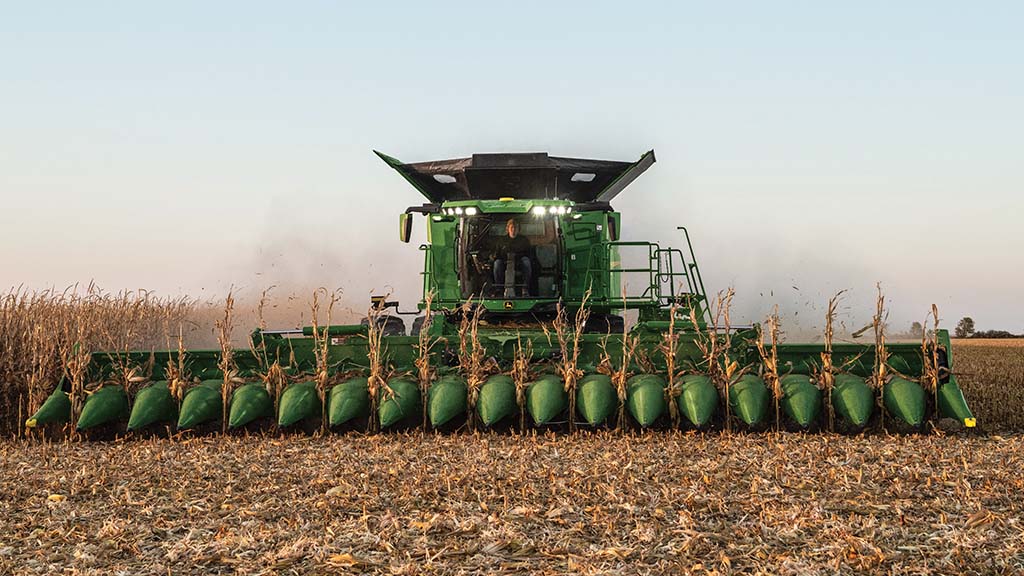

Corn Heads
Maintenance & Reliability
Our combines are supported by one of the most responsive dealer networks in the business.
John Deere Connected Support™
Keep running. That’s job one of John Deere Connected Support. You can reduce downtime with connected tools that remotely monitor and proactively service your combine.
Inspections
Keep your combine in tip-top condition with comprehensive inspections. The best-trained technicians in the industry will replace worn parts and tune up other key areas.
1Internal comparison between X9 1100 and S790 Combines, based on field conditions, per-unit harvested. Pre-production model shown.
2Based on internal testing, performance claims based on field and crop conditions at the time of testing; individual results may vary.
3Semi-trailer trucks with 993-bushel capacity. Specifications and design subject to change.
4Internal comparison between X9 1100 and S790 Combines, based on field conditions, per unit harvested.
5Internal comparison between X9 1000 and S790 Combines
6Internal comparison between X9 1000 and X790; results vary depending on field conditions.
7JDLink hardware comes standard with the machine. You can turn on JDLink connected service in your John Deere Operations Center account for free. JDLink requires a cellular connection to transfer information from machine to Operations Center. Consult your John Deere Dealer for coverage availability.
