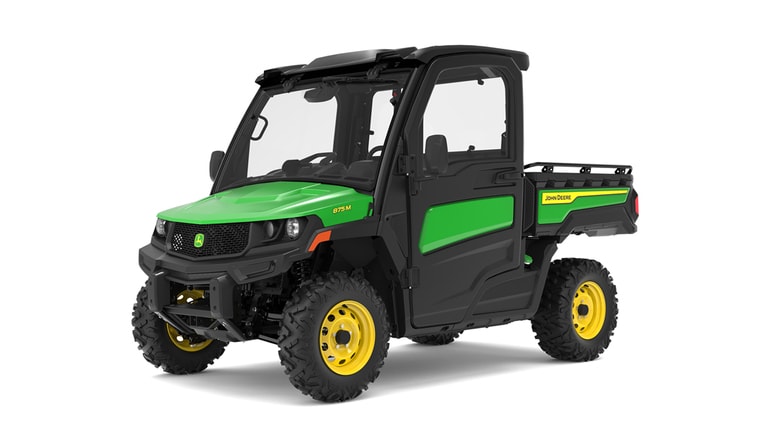

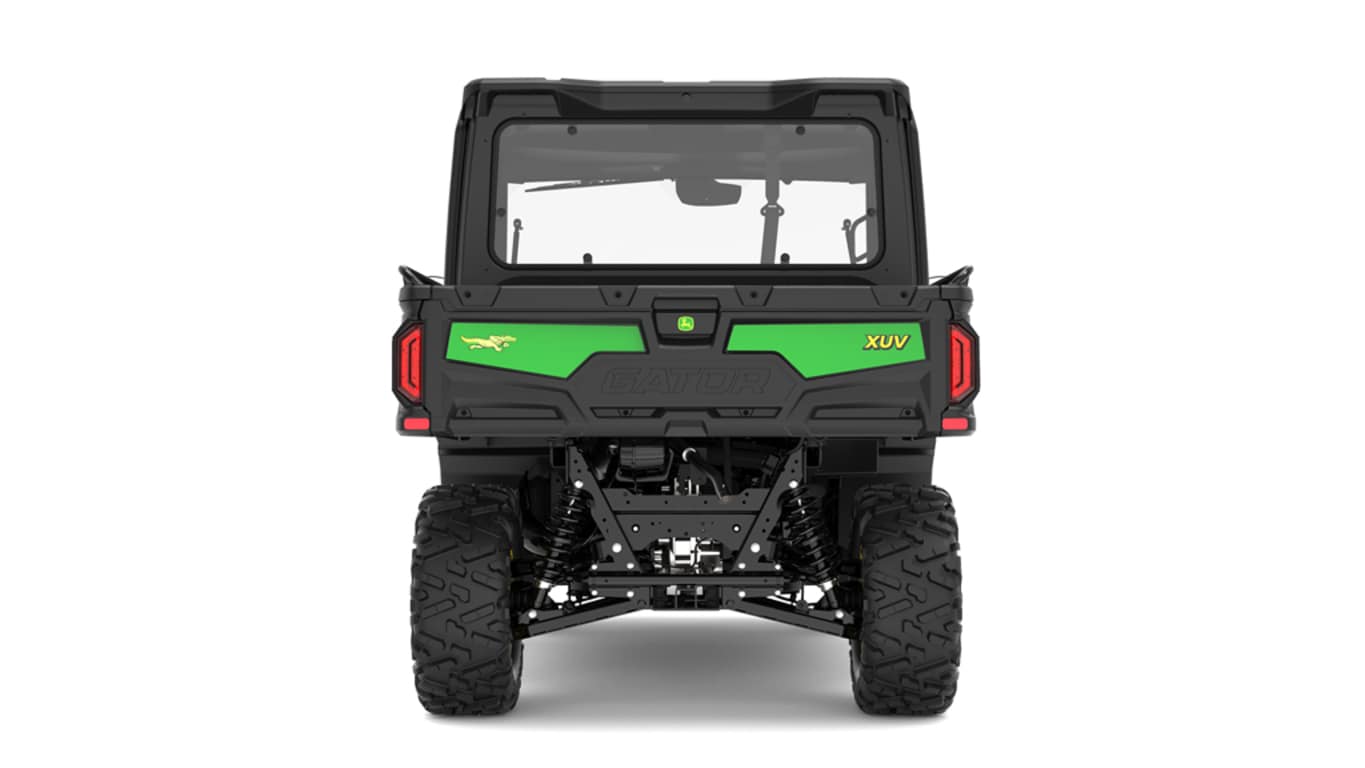

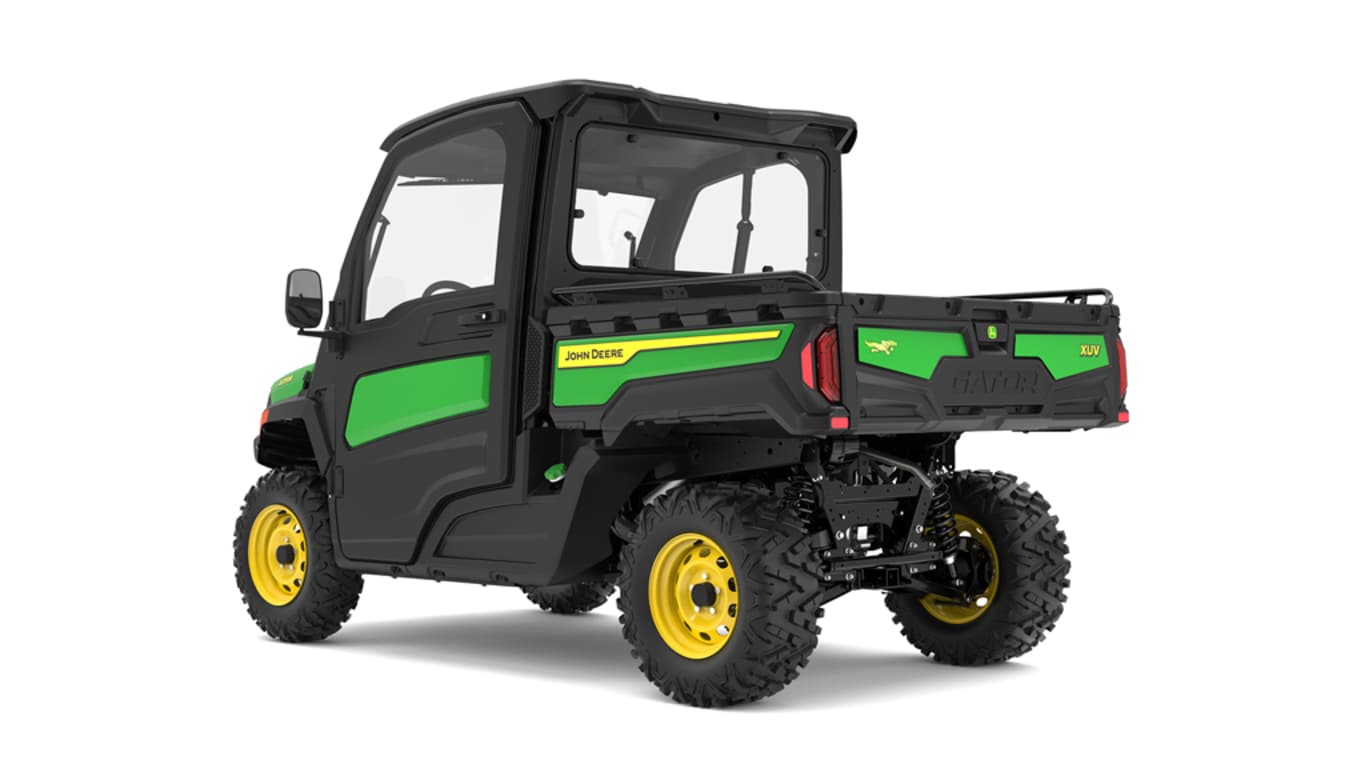

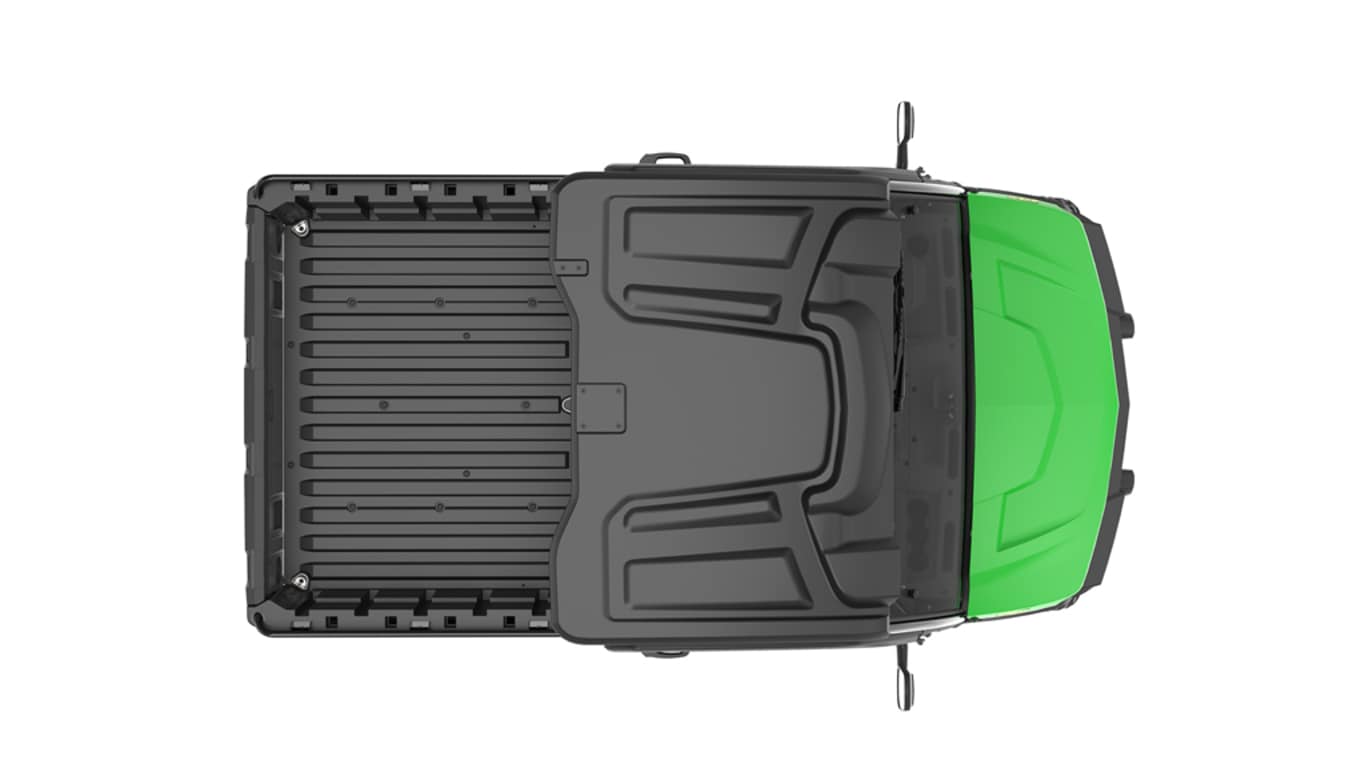

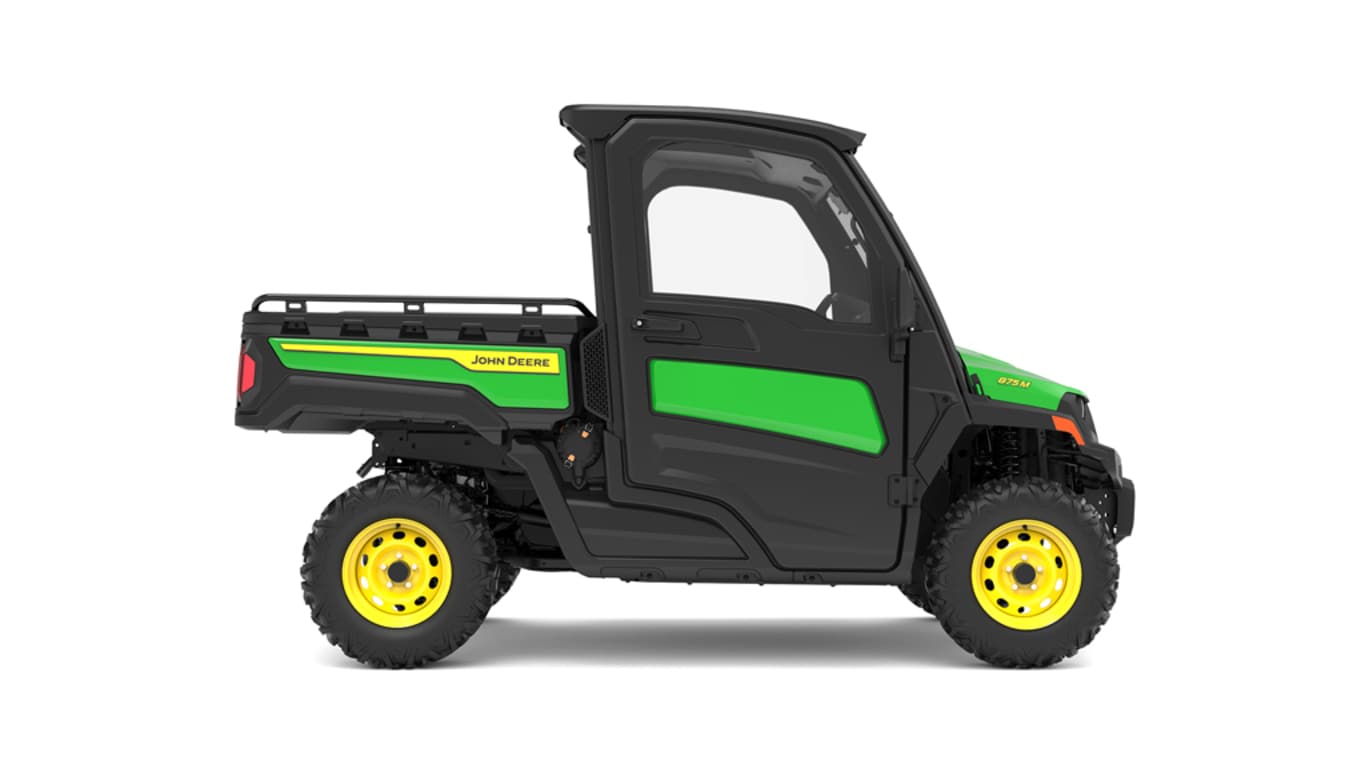

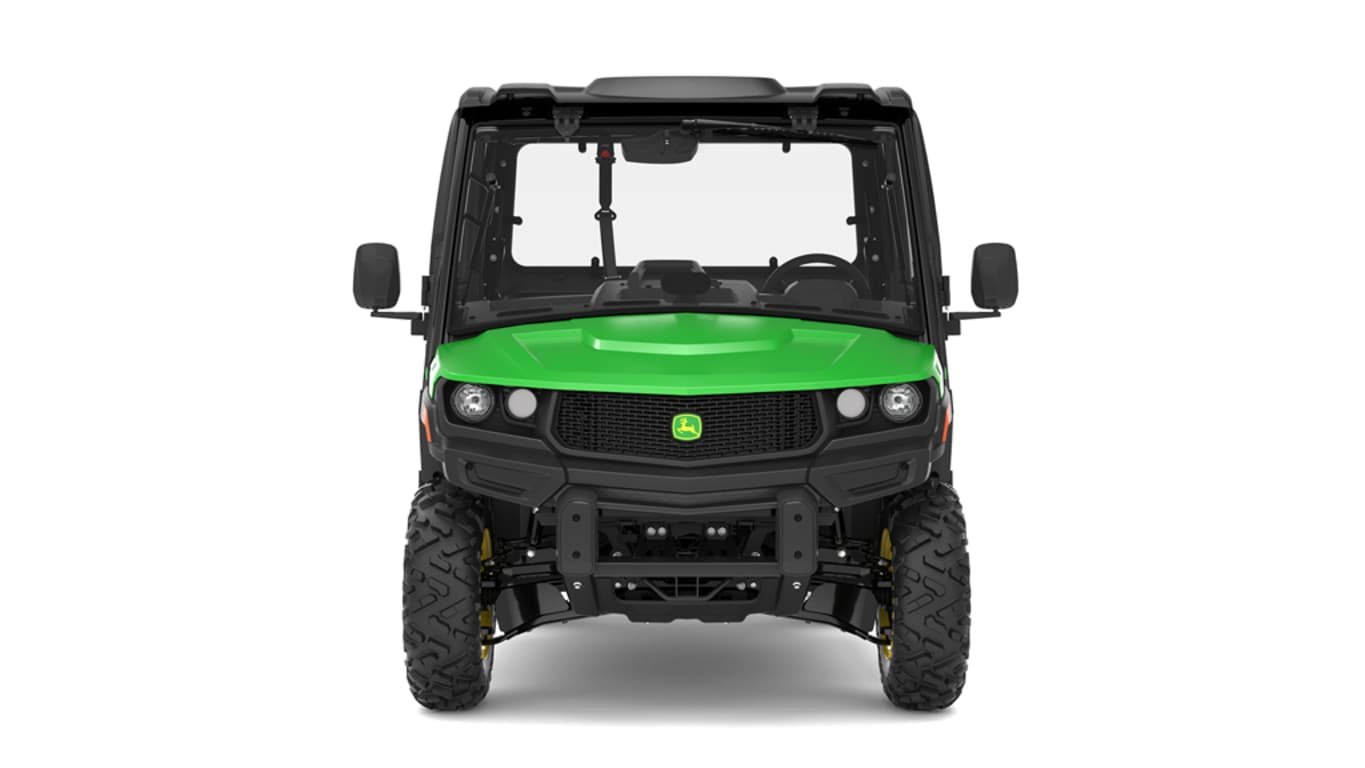

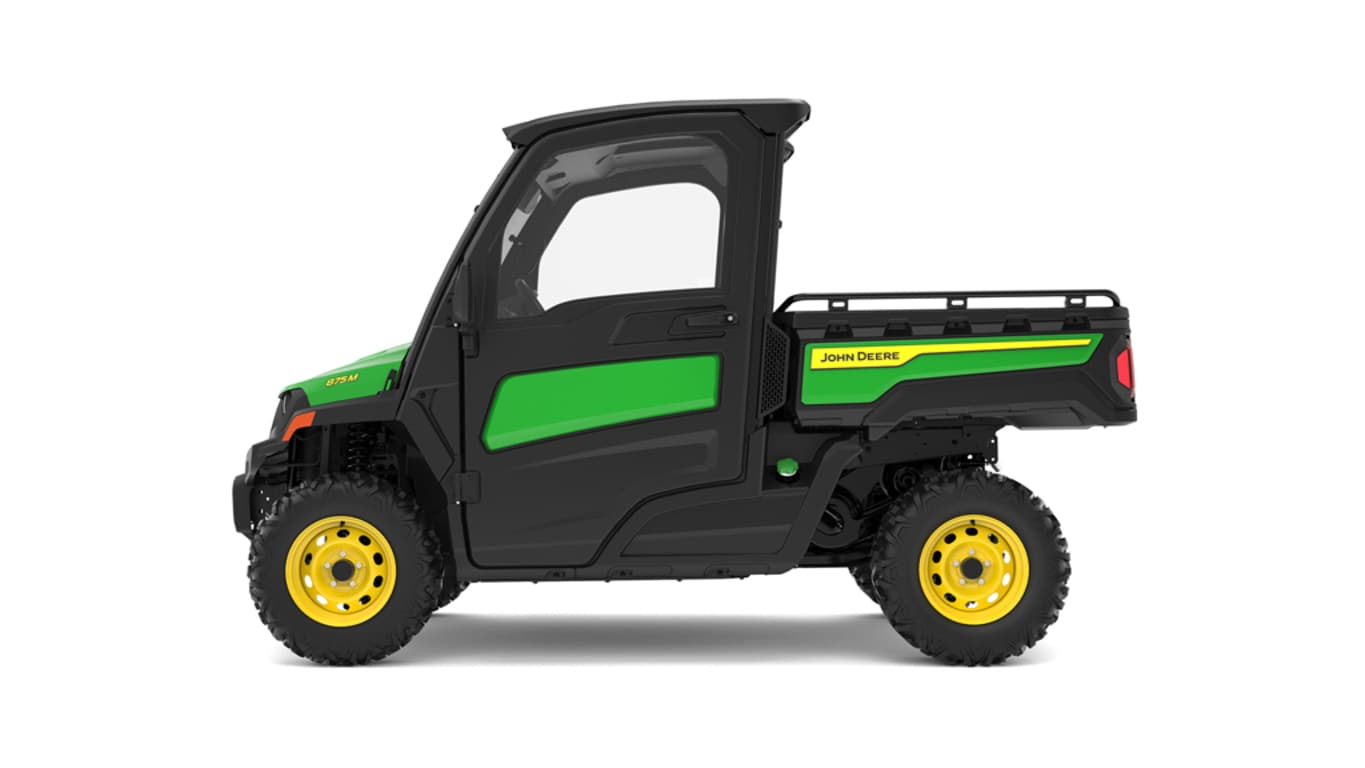

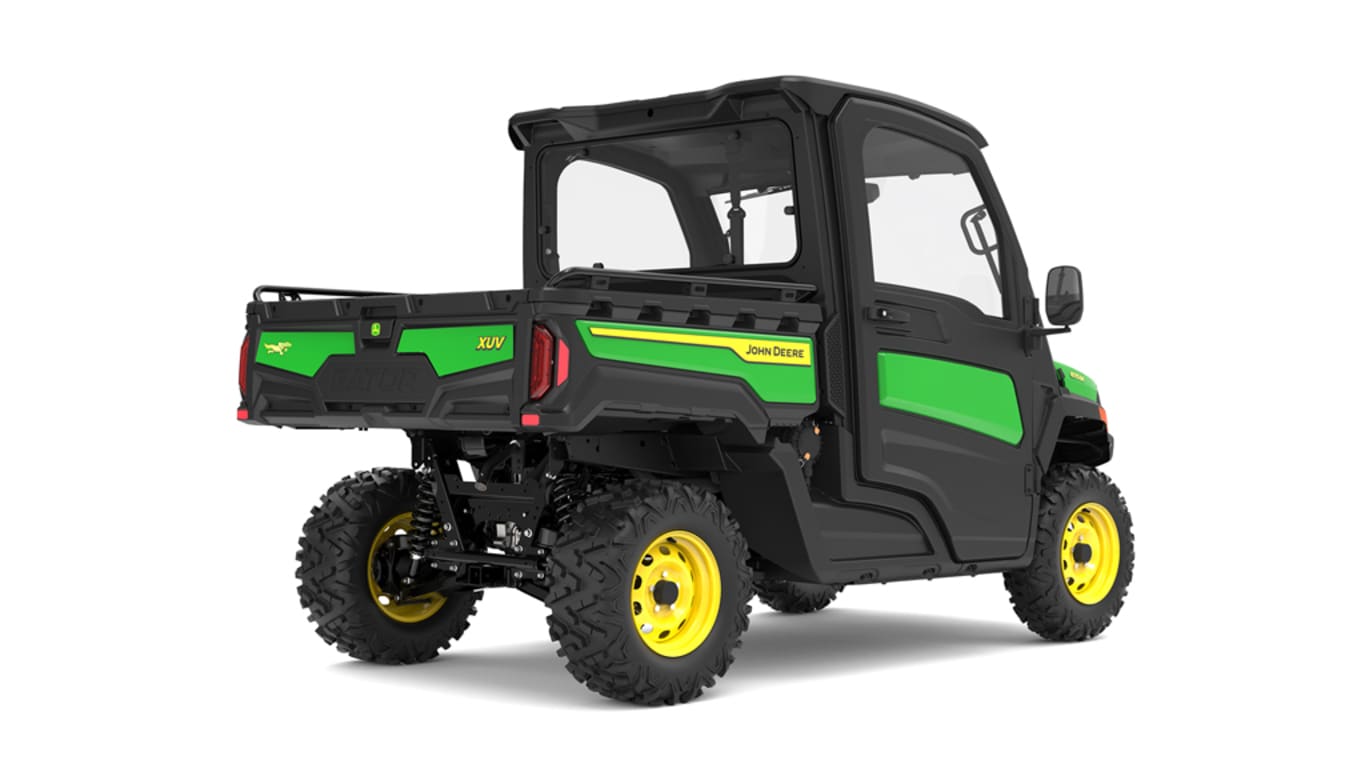

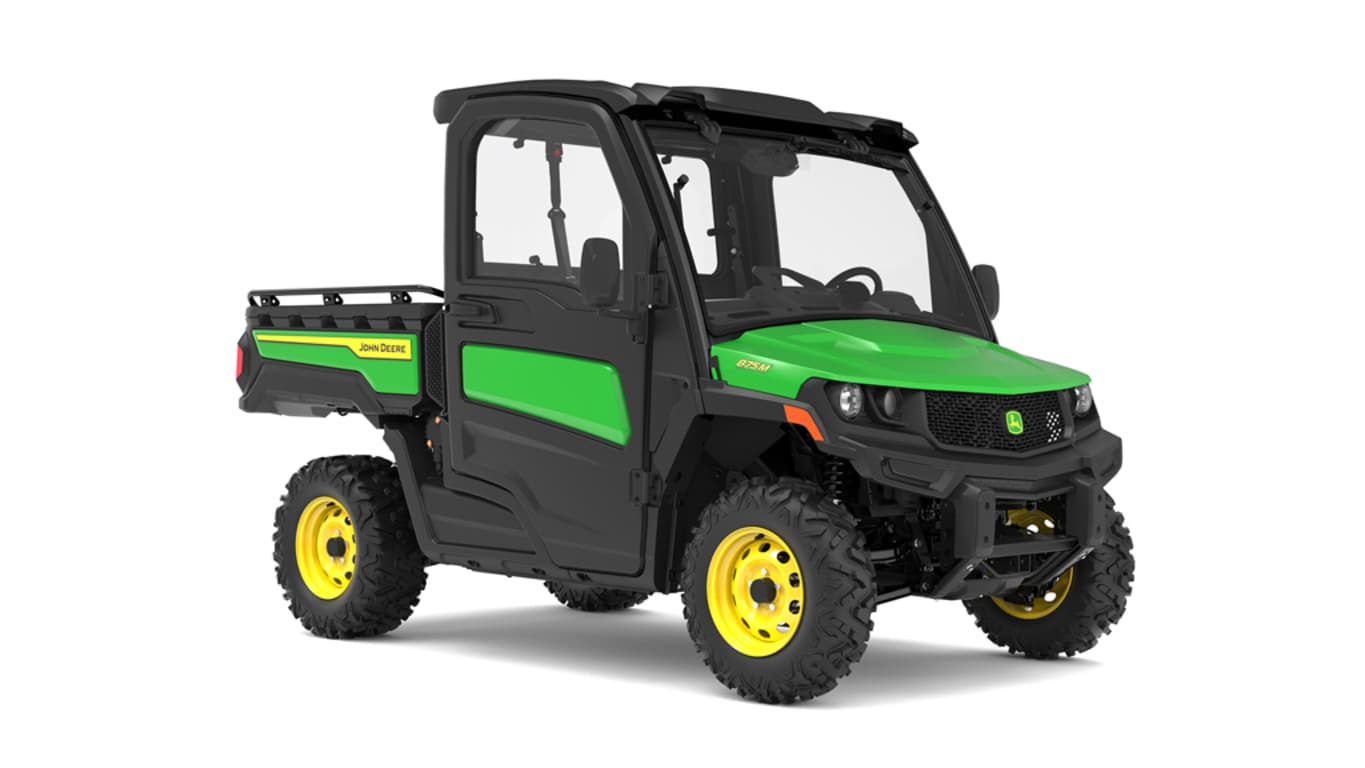

XUV 875M HVAC Cab Diesel | Crossover Gator™ Utility Vehicles UTV

Conquer tough terrain with confidence

You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

Standard four-wheel drive with rear differential lock

Dash mounted four-wheel drive and rear differential lock switches

With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.

Dual A-arm front and rear independent suspension

Rear suspension and ground clearance

The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with up to 305 mm (12 inches) of ground clearance.

Tires for any terrain

Terra Hawk all-terrain tire

Maxxis® Bighorn® 2.0 extreme terrain radial tire

Predator Heavy-Duty all-terrain radial tire

Full-Size Gator Utility Vehicles are available with three tire options:

Terra Hawk all-terrain tires
- Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
Maxxis Bighorn 2.0 extreme terrain radial tires
- Radial construction provides shock absorption, allowing for a smoother ride
- Non-directional tread pattern provides predictable cornering and claws up roots and rocks
Predator Heavy-Duty all-terrain radial tire
- Radial construction provides shock absorption, allowing for a smoother ride
- Flat profile increases footprint area, reducing ground pressure
- 8-ply rating delivers up to three times the life of Bighorn tires

Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.

Built for the long haul

Full-size Gator™ XUVs are built to work hard and go the extra mile.

Heavy-duty frame

Underside view of XUV 845M

Underside view of XUV825M S4

The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard full-underbody skid plate protects key components from damage.

Constant velocity boot protection

Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

Automotive-grade panels and optional protection packages

XUV 845R with optional premium protection package

The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.

TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.

Automotive-like controls

Instrument display, shift lever, and switches (shown on XUV 845R)

When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone. Comfort and convenience packages include cargo box power lift, dual-beam LED headlights, turn signals, even a winch.

Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.

When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.

Room for you, plus two, with cab comfort

When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.

Three-passenger seating with room to spare

40/60 split three-passenger bench seat (shown on XUV 845R)

Operator platform

The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

Climate-controlled comfort

HVAC controls (shown on XUV 845R)

Partially-open door windows and fully-open windshield

On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.

This customer benefit story is written for buyers viewing this story on John Deere's public website. The stories included in the detailed features section contain additional product information for dealer users. Links to related detailed feature stories:

Spacious cabs feature climate control, roll down windows, and many upgrade options

Designed for all-day comfort with many conveniences (one-row vehicles)

Before placing an order, please reference the Build and Price tool for any recent revisions to the below information.

Class-leading cargo box volume* configures to the needs of the job

The large cargo box on full-size Gator XUVs has a 454 kg (1000 lb) capacity so you can bring your gear, tools, and haul materials with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

Class-leading cargo box volume*

Cargo box shown with premium protection package

Cargo box with cargo

The cargo box resists dents, scratches, and rust because it is made from a tough composite material and can haul 524-L (18.5-cu ft) of your gear and material. Five D-ring tie down points and rails can be used to secure your load.

Quickly configure the cargo box to the needs of the job

Cargo box with 2x6 dividers

Cargo box utilizing the second level of storage

Molding the cargo box allows for built-in features that enable the box to be quickly reconfigured for the unique needs of every job. You can use standard 5-cm (2-in.) dimensional lumber to hold cargo in place or divide cargo box into separate areas. You can add a second level of storage space by leveraging the tiered storage lip. Stake pocket clamps allows for quick and toolless attachment installation and removal. On M-trim and R-trim vehicles, a 12-V power port is available to power attachments.

Your portable workbench

A pipe clamped to V-channel

Pocket with hardware and cupholder

The tailgate includes a flat work surface, ruler, and pockets to place hardware. A v-channel and four reinforced clamping pockets work together to securely hold round objects. Bump stops provide raised edges position your square edged objects.

Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

Power lift

Cargo box unloading gravel

Power lift switch

To save your back, the optional cargo box power lift empties heavy loads with the push of a button.

*Class is defined as a full-size heavy-duty crossover UTV with less than 100-in. wheelbase which is powered by a 750 to 900cc gasoline engine. Comparisons were made by calculating volume using published cargo box dimensions.

Durable, fuel-efficient diesel-powered drivetrain

854-cc (52.1-cu in.) diesel engine and drivetrain

The XUV 875 and XUV855M S4 Gator™ Utility Vehicles are powered by a fuel-efficient and durable diesel engine. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities. With plenty of torque to get the job done, this engine will provide reliable performance for years to come.

Store more gear

One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.

Cup holders

Four cup holders and center tray (shown on XUV835E)

Cab door cup holder and pocket

The dash has four cup holders, and cab vehicles have a cup holder in each door.

Dash and under-seat storage

Under seat storage (shown on XUV 845R)

Glove box, storage pocket, and dash bins (shown on XUV 845M)

The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.

Colour options and styling

Green and yellow XUV 845R

Olive and black XUV 845R

TrueTimber® KANATI camo XUV 845R

You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in three colours, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.

TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.

Go further between fill ups

Large fuel tank fill opening

Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.

XUV 875M HVAC Cab DieselCrossover Utility Vehicle
