| Specifications | ||||
|---|---|---|---|---|

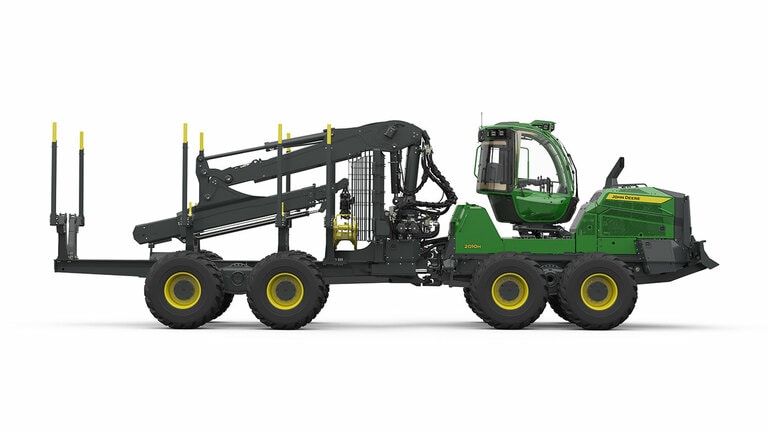

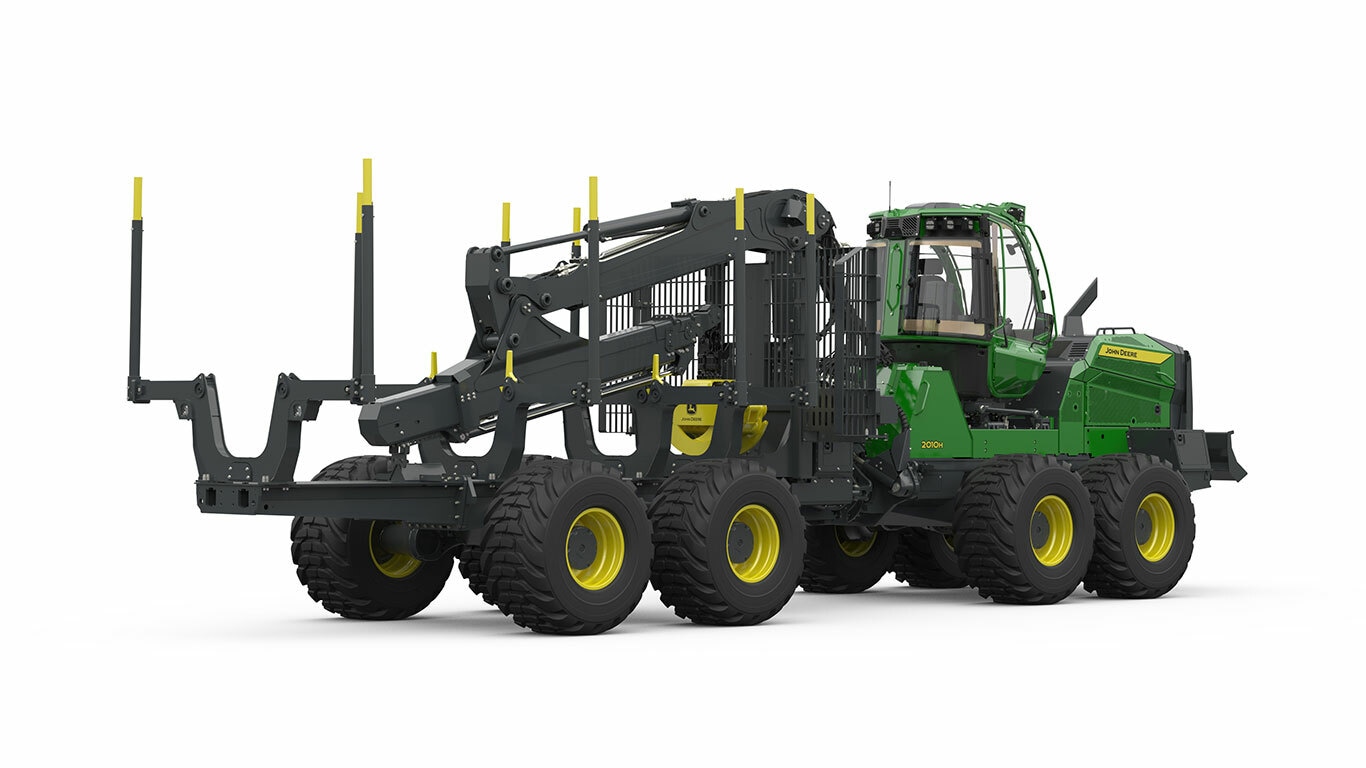

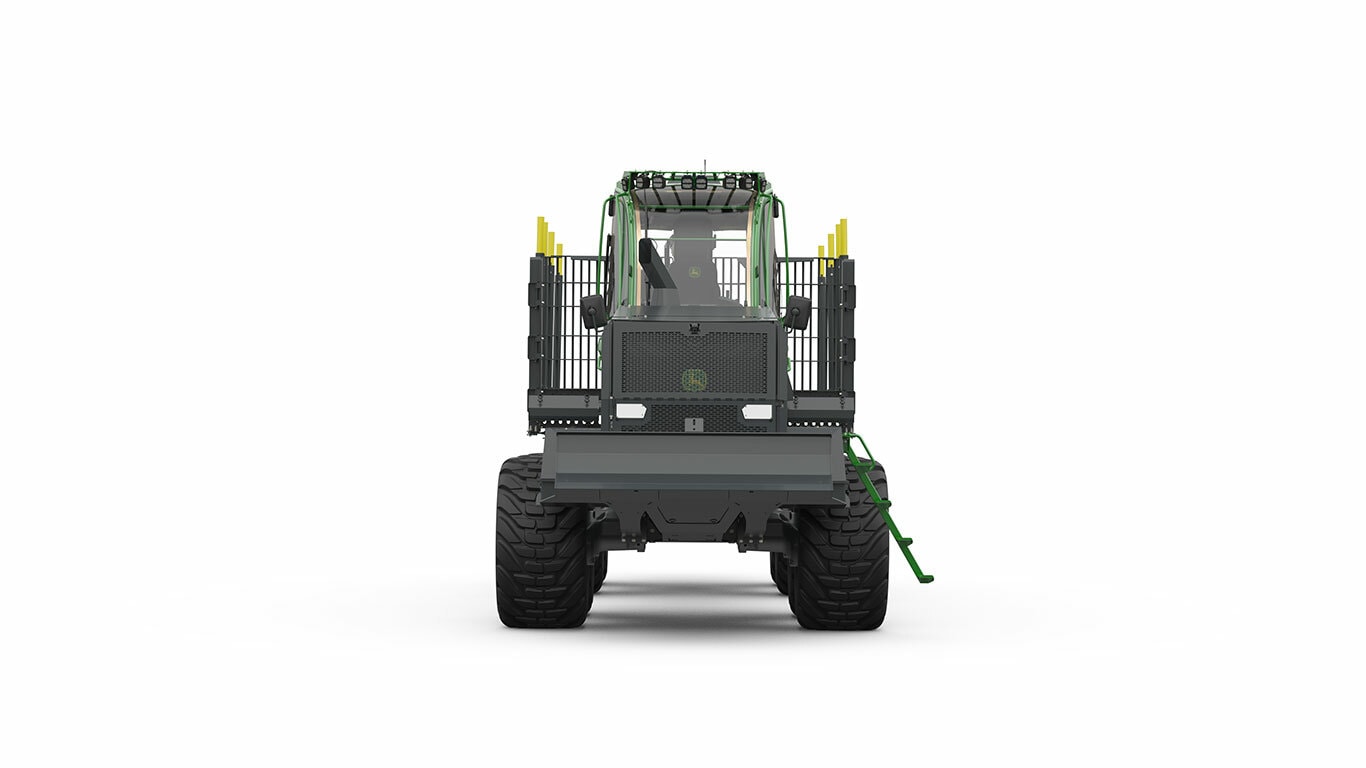

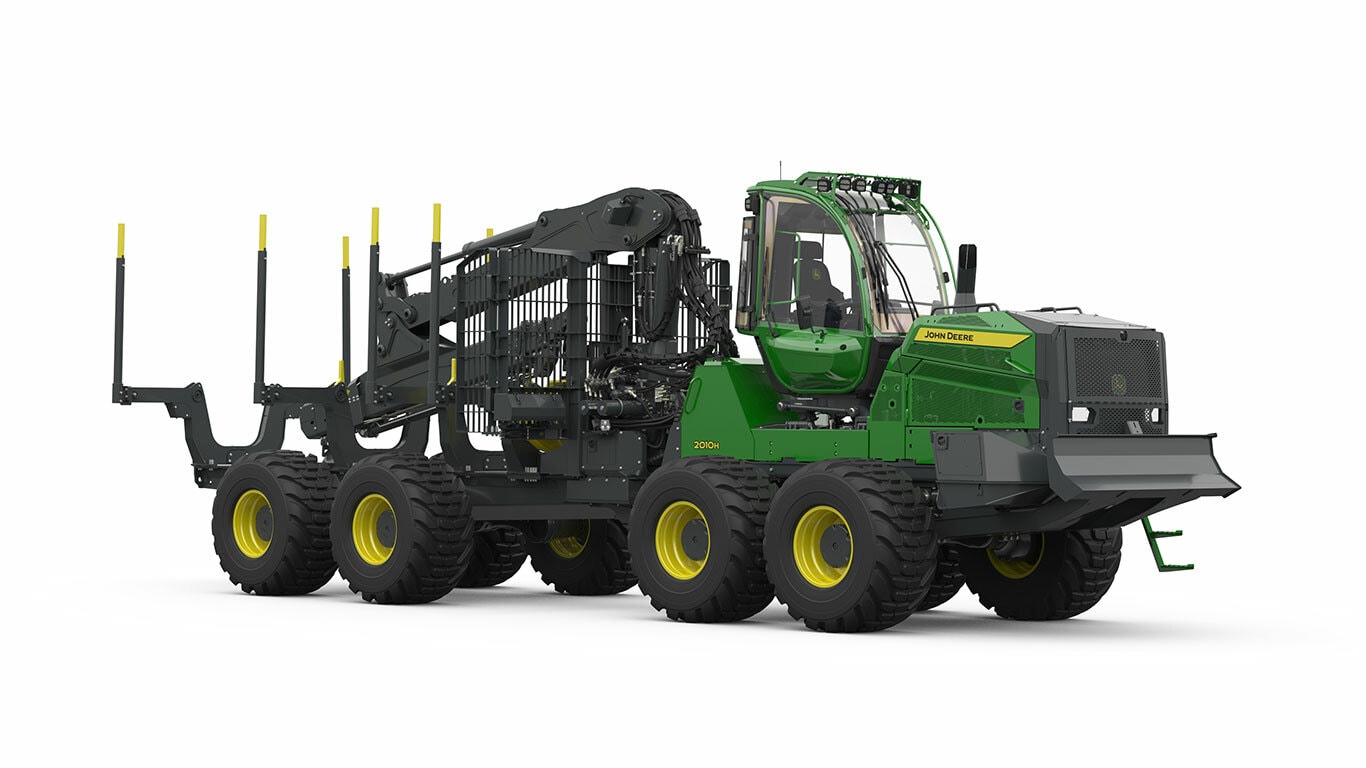

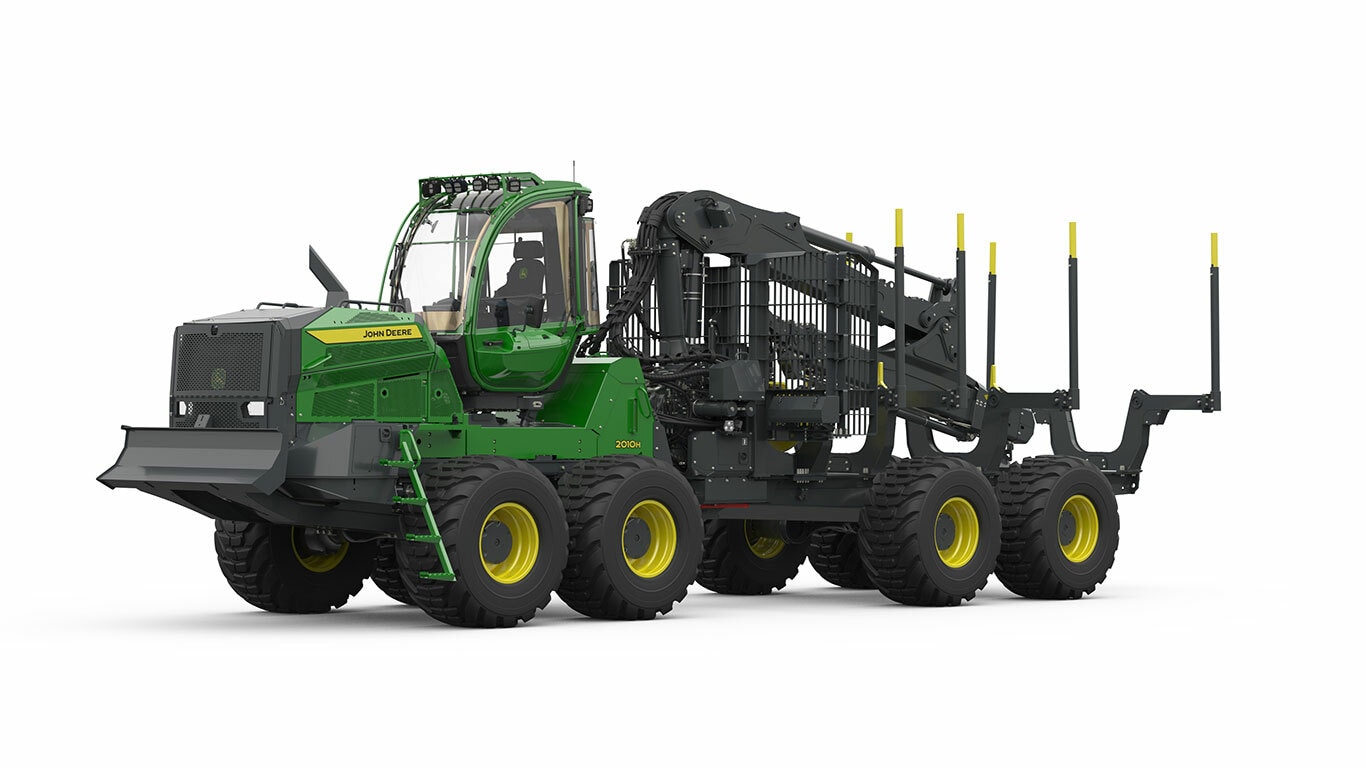

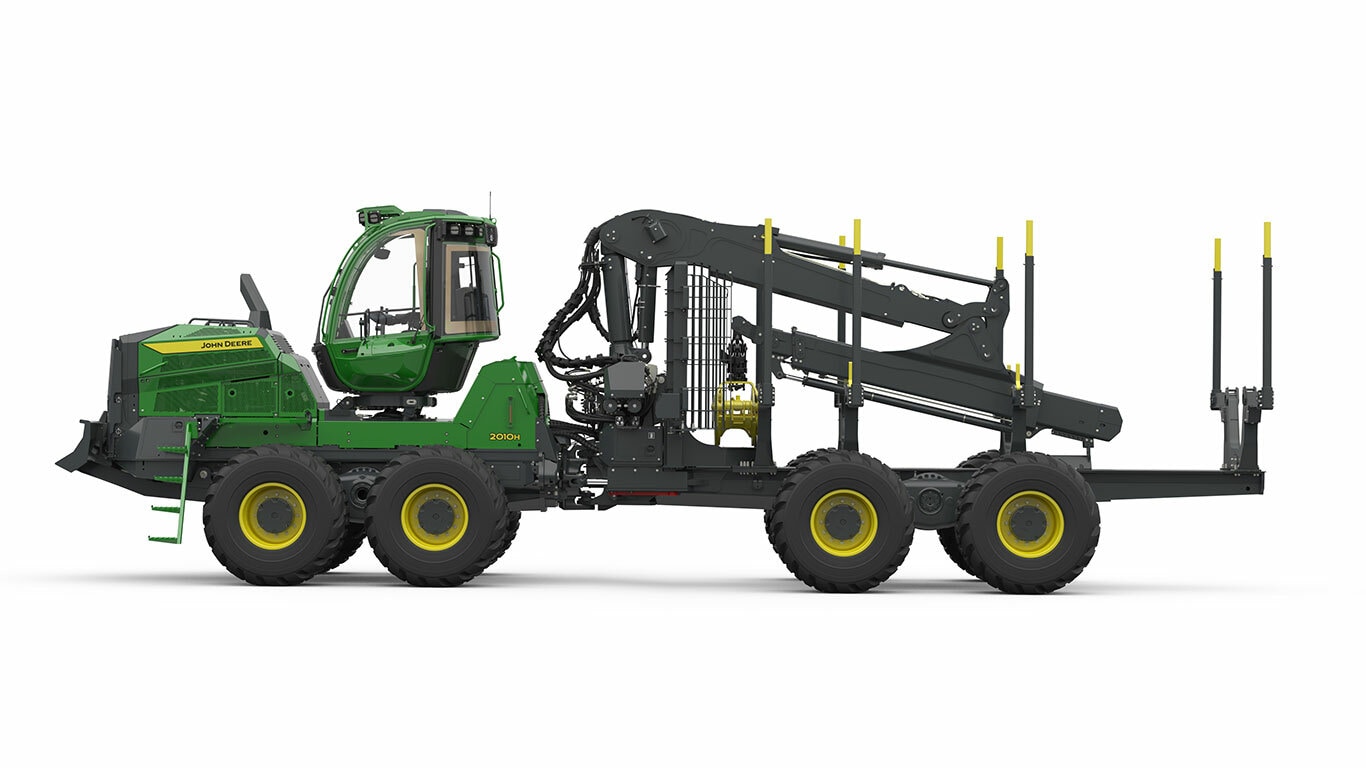

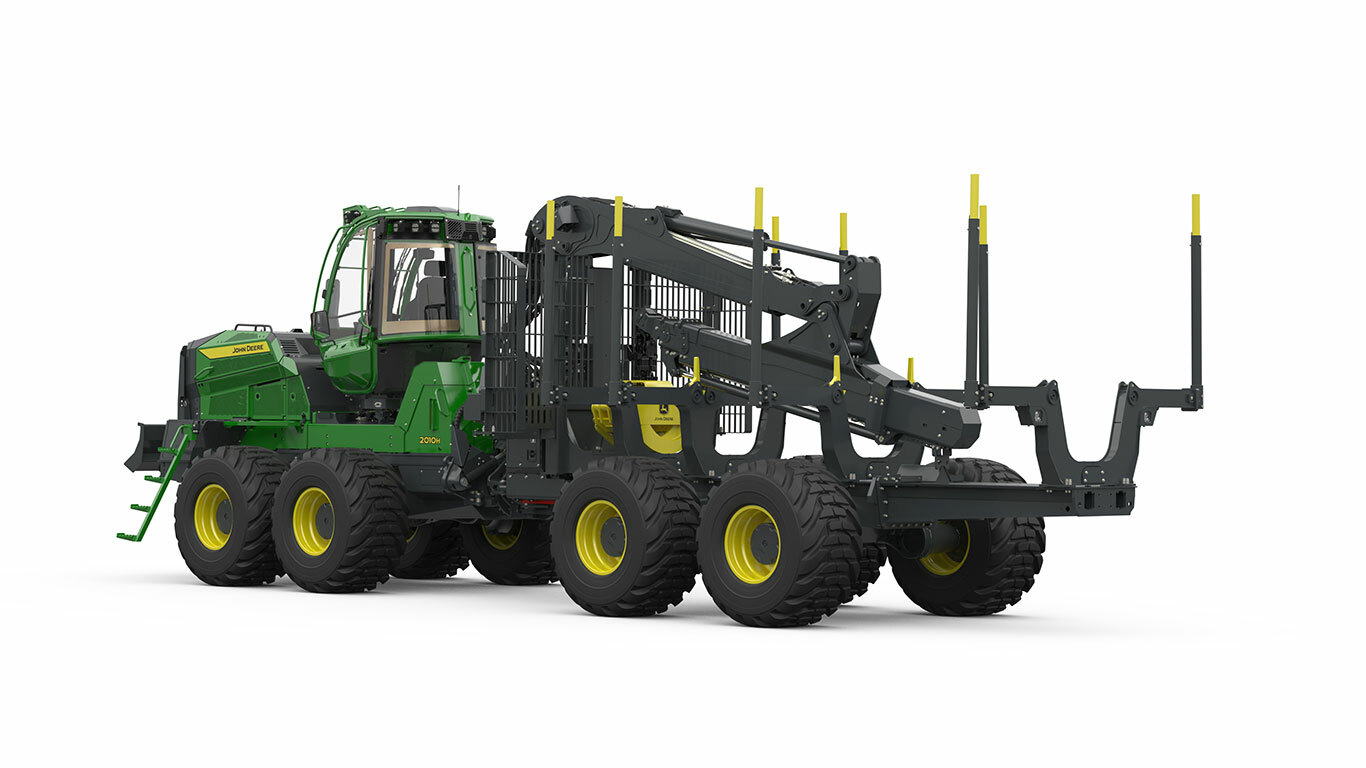

| John Deere 2010H Power for Heavy-Duty Final Felling |
| Load Rating | 20 t | |||
|---|---|---|---|---|
| Tractive force | 235 kN (6W) / 260 kN (8W) | |||
| Power | 220 kW |
| Max. reach | F9: 8.7 / 10.7 m, F10: 8.7 / 10.2 m | |||
|---|---|---|---|---|
| Gross lifting torque | F9: 170 kNm, F10: 210 kNm | |||
| Slewing torque | F9: 45 kNm, F10: 50 kNm | |||
| Slewing angle | 380 ° |
| Length | 4.5 m, 5.5 m, 6.0 m, 6.5 m | |||
|---|---|---|---|---|
| Cross-sectional area | 6.5 m², 7.5 m² |
| Cylinder count | 6 | |||
|---|---|---|---|---|
| Displacement | 9 l | |||
| Power | 220 kW @ 1600–1900 rpm | |||
| Torque | 1 400 Nm @ 1200–1400 rpm |
| Fuel tank | 380 l | |||
|---|---|---|---|---|
| DEF-liquid tank | 28.5 l | |||
| Hydraulic oil tank | 225 l |
| Front tires 6W/8W | 34" / 26.5", 28.5" | |||
|---|---|---|---|---|
| Rear Tires | 26.5", 28.5" |
| Length | 10.7 m, 12.7 m | |||
|---|---|---|---|---|
| Wheelbase | 5.9 m, 6.9 m | |||
| Width from | 2.99 m | |||
| Transport height from | 3.95 m | |||
| Ground Clearance | 75 cm | |||
| Weight 6W / 8W from | 25.5 t / 28.2 t | |||
| Steering angle | ±44 ° |
Product features are based on published information at the time of publication. Product features are subject to change without notice. Contact your local John Deere dealer for more information.
