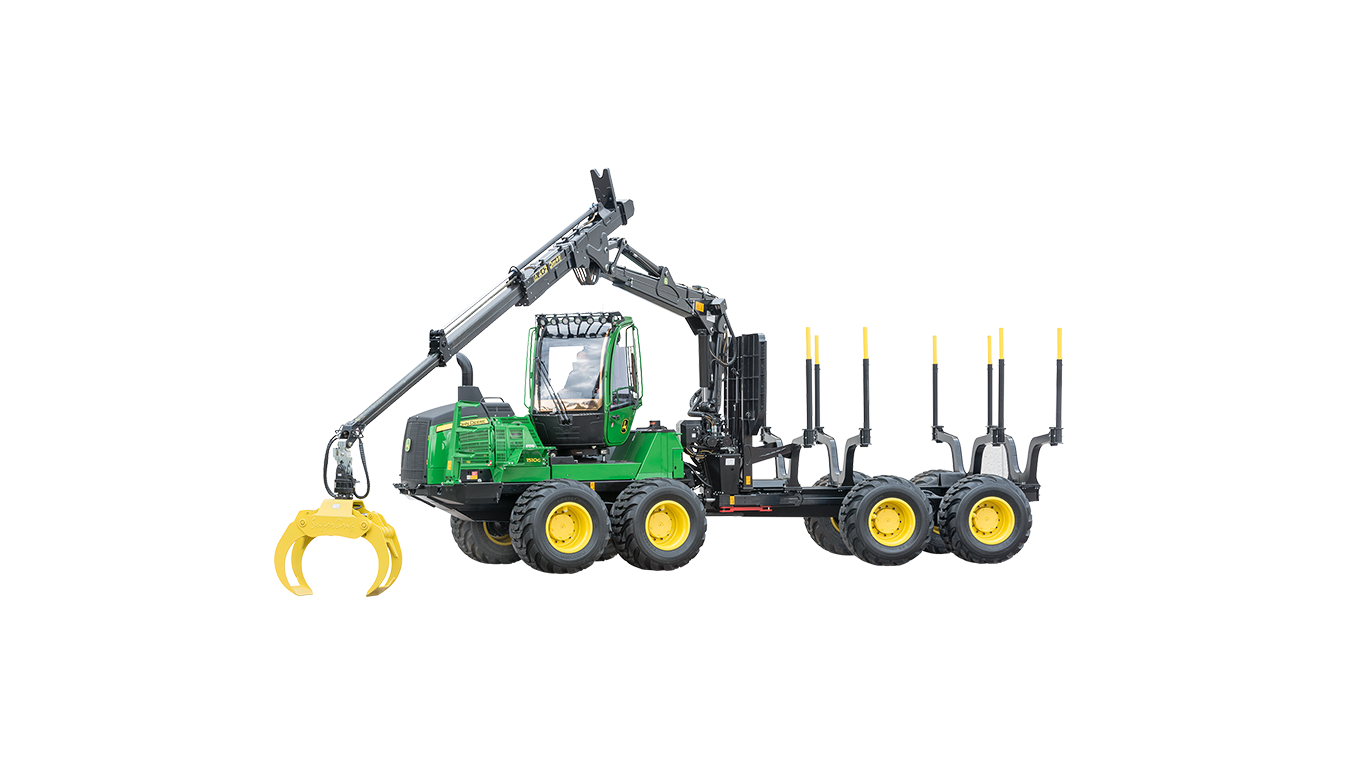

1510GForwarder
- Precise and efficient boom control
- Clear and simple electrical system
The XE-extension is a single extension and jib boom with external hosing for CF5, CF7 and CF7S 8,5 m booms of the small and mid-size forwarders.
The IBC system features electrical end damping for all the main boom movement directions. The system dampens the cylinder end movements softly and stops strong blow-like loads in the end positions.
The data between the machines are updated through a cloud service, and all the operators working at the same work site can see all the tree species and assortments with the driving routes right down to the individual logs.
The distance between the front and rear wheel hubs in the rear bogie is 1890 mm, i.e. 390 mm longer than in the standard model. The power train and turning radius are the same as with the standard. The long bogie also brings stability when navigating over obstacles in rocky terrain.
Sorters make it easy to sort the timber in the forwarder’s load area. Sorters are easy to use. The tiltable sorters can be quickly tilted with the grapple. The sorters stand about 20 cm high when vertical and about 10 cm when tilted.
With TimberMatic Maps, the different assortments can be highlighted with different colors by marking them as favourites. This together with the sorters, helps to separate the assortments and to build the load already sorted which speeds up the unloading considerably.
In addition to high performance, the boom control of 1510G is very precise. Simple CAN busses and a streamlined electrical system improve the efficiency of machine functions, decrease malfunction sensitivity and accelerate troubleshooting.
Product features are based on published information at the time of publication. Some options may not be available in all markets.
